Top Seller

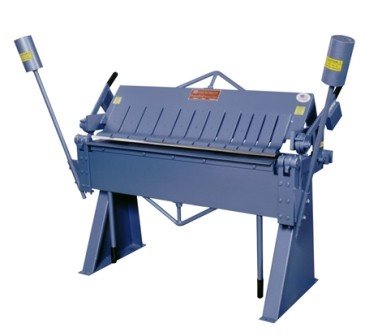

ROPER WHITNEY U-412-6 12 Ga.
Location:
McClellan Park, CA
Manufacturer:
Whitney
Model:
U-412-6
Capacity:
12 Gauge Mild Steel
Weight:
1600 lbs

Specifications

Condition:
new
Stock number:
7461
Capacity:
12 Gauge Mild Steel
Finger widths:
3, 4, and 5"
Bending length:
4'
Min reverse bend:
1/4"
Maximum depth of box:
6"
Maximum lift of beam:
1-5/8"
Approx shipping weight:
1600 lbs
Front to rear adjustment:
1-1/8"
With bending angle removed:
18 Gauge
With bending bar & angle removed:
22 Gauge
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: U-412-6
Bending Length: 4'
Capacity: 12 Gauge Mild Steel
with bending angle removed: 18 Gauge
with bending bar & angle removed: 22 Gauge
Min Reverse bend: 1/4"
Maximum lift of beam: 1-5/8"
Finger Widths: 3, 4, and 5"
Maximum depth of box: 6"
Front to rear adjustment: 1-1/8"
Approx shipping weight: 1600 lbs.
OPTIONAL RADIUS FINGERS ARE AVAILABLE - SOLD PER INCH
Roper Whitney Connecticut floor mounted manual bending
brakes are precision machines designed for accurate bending
within rated capacities.
FEATURES:
* 6" Depth of box capacity
* Positive clamping pressure adjustment
* Apront stop rod for repeat bends
* Replaceable bushings and hinge pin
* Long handles for extra leverage
* Work support angle bar for full capacity 1" min flange
* Improved leg design for lighter weight
* All steel constructions - no castings
* Heavy tie rods for minimum deflection
* Removable bending bar & angle
* Adjustable apron hinges
* Positive rear material gauge adjustment
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
