Top Seller

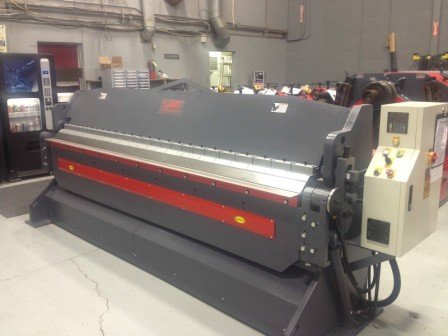

JMT VH-1010-6 10 Ga. x
Location:
McClellan Park, CA
Manufacturer:
JMT
Model:
VH-1010-6
Capacity:
120"
Weight:
7700 lbs

Specifications

Condition:
new
Stock number:
7648
Motor:
5 HP, 220 Volt, 3 Phase
Box depth:
6"
Bend angle:
0-135 degrees
Finger sizes:
3", 4", 5", 6"
Beam adjustment:
1"
Shipping weight:
7700 lbs
Min reverse bend:
984"
Capacity - length:
120"
Capacity thickness:
10 Gauge Mild Steel
Shipping dimensions:
153"L x 46"W x 71"H
Capacity thickness 2:
12 Gauge Stainless
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: VH-1010-6
Capacity - Length: 120"
Capacity Thickness: 10 Gauge Mild Steel
Capacity Thickness: 12 Gauge Stainless
Bend Angle: 0-135 degrees
Finger Sizes: 3", 4", 5", 6"
Beam Adjustment: 1"
Min Reverse Bend: .984"
Box Depth: 6"
Motor: 5 HP, 220 Volt, 3 Phase
Shipping Dimensions: 153"L x 46"W x 71"H
Shipping Weight: 7700 lbs.
FEATURES:
* NC control
* Hydraulically Driven Bend Plate
* Easy Degree Adjustment Auto-stop
* Semi-Automatic bending mode with foot pedal control for
increased productivity.
* Heavy Duty Construction
* Easy Material Thickness Adjustment
* Variable Bending Speed
* Easy Clamping Pressure Adjustment
* Greasable Joints and Filtered Hydraulic System for
longevity.
* Top of the line electrical components.
