Capacity: 10' X 10 gauge Mild Steel
Bending Length: 10'
Weight: 8,800 lbs.

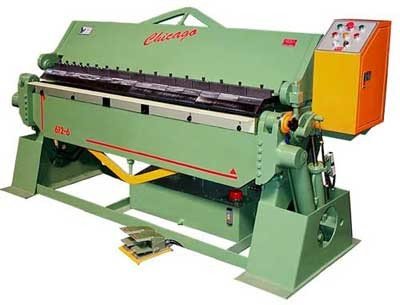

Chicago Dreis & Krump brings power and convenience to its
legendary hand brake family because sometimes, for some
jobs, you can save time and money with a little extra
STANDARD EQUIPMENT WITH MACHINE:
* Removable Nose Bar
* Bolted Bottom Bar
* Compact Hydraulic Power Unit
* Angle Bar
* Insert Bar
* Oil Level Sight Gauge
* Removeable fingers
CONTROL PANEL FEATURES:
* On/Off Key Selector Switch
* Bending Leaf Up/Down Pushbuttons
* Clamp/Unclamp Pushbuttons Motor Start Pushbutton
* Emergency Stop Push Buttton
* Automatic Cycle Push Button
Electric Foot Switch - Clamps and unclamps Top Leaf. Allows
operator mobility when loading and unloading material.
Bend Angle Dial Adjustment - Adjustable cam and scale that
read in degrees, actuates an electric limit switch for bend
angle control and repeatability of bends.
Material Thickness Dial Adjustment - Reference scale for
speedier set up when adjusting clamping pressure.
Back Gauge - 25 1/2" travel, rack and pinion type gauge with
hand wheel adjustment on right side of machine. Inch/Cm
Inch Control - Bending leaf up/down pushbuttons allow
complete operator control of the bending leaf motion.
Automatic Cycle - Actuating the "Automatic Pushbutton"
clamps the top leaf, raises the bending leaf to the preset
bend angle dial adjustment setting, lowers the bending leaf,
unclamps the top leaf.
One general purpose motor with direct mount hydraulic pump
for operation on 220/440 volts, 3 phase, 60 hertz, with 110
volt control circuit (please specify voltage).
