- 7,700 lbs
- Stock number:
- 5 hp
- 220V / 1-phase
- Box depth:
- Bend angle:
- 0 - 135
- Finger sizes:
- 3" - 4" - 5" - 6"
- Thickness (ss):
- 10 ga. (12 ga.)
- Beam adjustment:
- Shipping weight:
- 7,700 lbs
- Min reverse bend:
- Shipping dimensions:
- 153" x 46" x 71"
- Machine Tools equipment in United States
- Subcategory 2:
- Box & pan (finger)
Motor: 5 hp
Min Reverse Bend: .984"
Thickness (SS): 10 ga. (12 ga.)
Box Depth: 6"
Beam Adjustment: 1"
Bend Angle: 0 - 135
Finger Sizes: 3" - 4" - 5" - 6"
Power: 220V / 1-phase
Shipping Weight: 7,700 lbs.
Shipping Dimensions: 153" x 46" x 71"

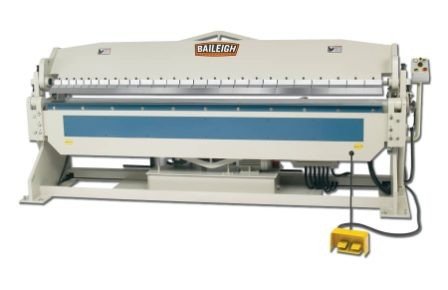

The BB-12010H hydraulic box and pan brake is a very powerful
machine that can bend up to 10 gauge mild steel and 12 gauge
stainless steel. The machine has a very rigid electro welded
steel frame with massive truss rods for additional support
to minimize any deformation with bending at full capacity.
This box and pan brake has 26-6" fingers assorted in
different sizes so the fabricator can adjust them for
different box and pan applications. This hydraulic sheet
metal brake allows the operator to dial in a programmed bend
when the machine is used in the manual or semi-automatic
mode. Operation of the machine can be done at the operator
console by toggle or by using the foot pedal controls. The
base of this model has an extra rigid design to support the
weight of heavier materials. The powerful industrial grade
hydraulics clamp the material at the beam, lifts the leaf to
the pre-programmed bend, and finally opens the beam when the
bend is complete. This is the perfect hydraulic bending
brake for those production oriented fabrication shops.
Heavily built to offer years of service and profit to any
production shop. Sheet Metal Bending Brake Features
- Hydraulically Driven Bend Plate
- Easy Degree Adjustment Auto-stop
- Semi-Automatic bending mode with foot pedal control for
- Heavy Duty Construction
- Easy Material Thickness Adjustment
- Variable Bending Speed
- Easy Clamping Pressure Adjustment
- Greasable Joints and Filtered Hydraulic System for
- Top of the line electrical components.
