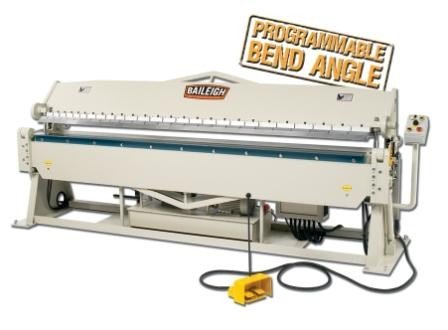

BAILEIGH BB-12014H 14 Ga. x
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
BB-12014H
Weight:
5,830 lbs

Specifications

Condition:
new
Stock number:
6222
Motor:
3 hp
Power:
220V / 1-phase
Length:
120"
Box depth:
6"
Bend angle:
0 - 135
Finger sizes:
3" - 4" - 5" - 6"
Thickness (ss):
14 ga. (18 ga.)
Beam adjustment:
1"
Shipping weight:
5,830 lbs
Min reverse bend:
5"
Shipping dimensions:
153" x 46" x 67"
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: BB-12014H
Motor: 3 hp
Min Reverse Bend: .5"
Thickness (SS): 14 ga. (18 ga.)
Box Depth: 6"
Beam Adjustment: 1"
Bend Angle: 0 - 135
Finger Sizes: 3" - 4" - 5" - 6"
Power: 220V / 1-phase
Shipping Weight: 5,830 lbs.
Length: 120"
Shipping Dimensions: 153" x 46" x 67"
* specifications subject to change without notice.
DESCRIPTION:
All of us need a little extra help sometimes and that is
where the BB-12014H uses an indudtrial grade hydraulic
systems to replace the manual functions of the BB-12014H
manual sheet metal brake making your shop more efficient and
saving money. Operation of the BB-12014H hydraulic brake is
very simple and straight forward. To create the correct
bend in your sheet metal, simply dial in the desired degree
including spring back, load the machine, then begin the
cycle by steooing on the foot pedal controls. The machine
will clamp the material and the leaf will lift to the
desired angle and return, then the upper beam unclamps the
material ready for the next bend. These operations can
either be done on the control panel or with the supplied
foot pedal.
The BB-12014H runs on 220V 3 phase power and has enough
strength to bend 14 guage mild steel or 18 guage stainless
steel sheet metal to a maximum of 135 degrees. The
BB-12014H like all Baileigh Industrial sheet metal brakes
is built to last, the fully welded frame and support rods
add rigidity to the overall structure allowing for years of
trouble free use.
