BAILEIGH BB-9612H 12 Ga. x
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
BB-9612H
Capacity:
96"
Weight:
5280 lbs

Specifications

Condition:
new
Stock number:
6522
Motor:
3 hp
Box depth:
6"
Bend angle:
0 - 135 deg
Finger sizes:
3" / 4" / 5" / 6"
Beam adjustment:
1"
Capacity length:
96"
Shipping weight:
5280 lbs
Min reverse bend:
5"
Power requirement:
220v / 3 phase
Capacity thickness:
12 Gauge Mild (14 Gauge Stainless)
Shipping dimensions (l/w/h):
132" / 46" / 67"
Subcategory:
Brakes
Subcategory 2:
Box & pan (finger)

Description

Model: BB-9612H
Capacity Length: 96"
Capacity Thickness: 12 Gauge Mild (14 Gauge Stainless)
Bend Angle: 0 - 135 deg.
Finger Sizes: 3" / 4" / 5" / 6"
Beam Adjustment: 1"
Min Reverse Bend: .5"
Box Depth: 6"
Motor: 3 hp
Power Requirement: 220v / 3 phase
Shipping Dimensions (L/W/H): 132" / 46" / 67"
Shipping Weight: 5280 lbs

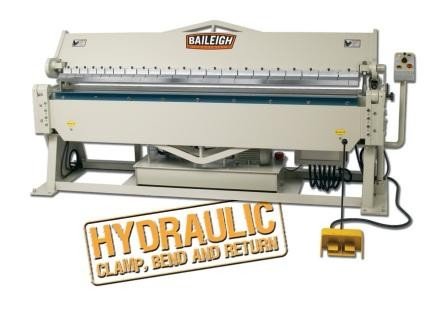

The BB-9612H hydraulic box and pan brake is a powerful
machine capable of bending up to 12 gauge sheet metal at a
width up to 8' wide. This machine has 6-3", 4-4", 10-5" and
2-6" 6"fingers that allows any fabricator to adjust for
different size boxes and pans they wish to fabricate. This
machine is rigidly built with an electro welded beam and
leaf and further stabilized with truss rod support
minimizing any deflection when bending at full capacity.
The BB-9612H hydraulic box and pan brake uses powerful
industrial grade hydraulics to lift the leaf and can be run
in a manual or semi-automatic mode via toggle or the foot
pedal controls. The beam is also lifted and clamped
hydraulically. This machine has a programmable bend
adjustment making this a very production oriented hydraulic
sheet metal brake. To get closer between bends the apron can
be detached.
Like all other Baileigh Industrial sheet metal equipment,
this machine has been designed and built to very high
standards and offers years of profitable service to the
fabricator.
