- McClellan Park, CA, USA
- No price
- 0 to 2"
- Stock number:
- Bed width:
- Max speed:
- 20 Strokes Per Minute
- Ram stroke:
- 0 to 2"
- Window depth:
- Window height:
- Approx. weight:
- 2025 lbs
- Bed adjustment:
- Back gauge depth:
- 0 to 19", 0 to 21" Bet Cylinders
- Floor stand option:
- #BST224 +$750.00
- Bed & ram thickness:
- Full stroke free air:
- 4.4 CFS
- Distance between housings:
- Presses in United States
- Subcategory 2:
- Hydraulic press brakes
Bed Width: 2'
Distance Between Housings: 24"
Ram Stroke: 0 to 2"
Bed Adjustment: 3"
Window Depth: 6"
Window Height: 8-3/4"
Bed & Ram Thickness: 1-3/4"
Back Gauge Depth: 0 to 19", 0 to 21" Bet Cylinders
Full Stroke Free Air: 4.4 CFS
Max Speed: 20 Strokes Per Minute
Approx. Weight: 2025 lbs.
Floor stand option: #BST224 +$750.00
* Adjustable Stroke Depth Control is provided by the screw
stop for precise repeatability. Raise the adjustable bed and
shorten the ram stroke to maximixe productivity while
reducing air consumption and minimizing the pinch point for
* Adjustable Die Space handles numerous tool sets and
reduces or eliminates the pinch point. Per OSHA guidelines,
a die space gap of 1/4" or less is not a pinch point and
provides the safest operation method. Loosen the bed and
raise or lower it with the large bed elevating screws.
LeEveling of bed to ram is easily accomplished using this
* Ram Speed Control via an infinitely variable valve allows
instant adjustment of airflow to the dual cylinders. A
minimum setup creates a creep mode for setup or select any
other position to safely match ram speed with your job.
* Safety Hooded Foot Pedal controls all ram motion. Fully
depress control pedal for down stroke. Slightly release
pedal to stop advancing the ram. Completely release pedal at
any time and the counter-balanced ram automatically retracts
to the top of the stroke. For added safety, the ram retracts
if air supply is removed.
* Modular FRL Unit is standard on all models to condition
air supply to pneumatic components for long life. The unit
consists of an adjustable filter/regulator module with
pressure gauge, adjustable flow lubricator module and a
three-way lockable shut-off valve. The valve is vented to
relieve downstream pressure in the off position per OSHA
guidelines Keyed padlock and lockout tag are included.
* Variable Tonnage Control provided through the modular
filter/regulator/lubricator unit delivers twelve or twenty-
four tons of ram force to form up to 3/8" or 1/2" at maximum
pressure. Lower the pressure to suit the job, reduce air
consumption and preserve tooling.

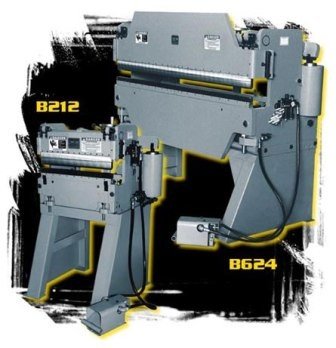

* Atek's Press Brakes are recognized worldwide as proven
performers giving more years of service in the field than
any comparable unit. The rugged lever weldment absorbs
torque generated by off center loads. Bed deflection is less
than industry standards. From the smallest shop to the
largest corporation, the Bantam name is known for dependable
* Our fully Pneumatic Press Brakes require minimal service.
Designed for simplicity, there are few moving parts to wear
out - no motor, clutch or brake to maintain or replace.
* Every Atek Bantam is designed and built with quality and
attention to details. Ram guides are simple to adjust and
provide years of service. All critical pivot points are heat
treated and equipped with grease fittings. Special bushing
material is engineered for high loads to
