- McClellan Park, CA, USA
- No price
- Stock number:
- 15 HP
- Die space:
- Die opening:
- 144" X 16 Gauge
- Die clearance:
- Bending capacity:
- Length of stroke:
- With angle insert:
- 144" X 14 Gauge
- Bed and ram plates:
- 2-1/2" Thick
- Overall dimensions:
- 14'6" Long
- Strokes per minute:
- 20 to 50
- Approx. shipping weight:
- 10,000 lbs
- Front & rear support arm range:
- Presses in United States
- Presses in California
- Subcategory 2:
- Subcategory 3:
- Hydraulic press brakes
Model: 15/12 (New)
Bending Capacity: 7/8"
Die Opening: 144" X 16 Gauge
With Angle Insert: 144" X 14 Gauge
Length of Stroke: 3"
Strokes per Minute: 20 to 50
Die Clearance: 2-1/8"
Die Space: 7-1/2"
Motor: 15 HP
Overall Dimensions: 14'6" Long
22" Front to Back
Bed and Ram Plates: 2-1/2" Thick
34" Depth - Ram
34" Depth - Bed
147" Depth - Length
Front & Rear Support Arm Range: 39"
Approx. Shipping Weight: 10,000 lbs.
(1) No. 37 Roto-Die (with 4 forming operations)
(1) No. 1 Forming Die (85 Degree)
(1) No. 24 Hemming Die (30 Degree)
(5) No. 50 Sheet Support Arms with Clips
(1) No. 51 Squaring Arm with Clips
(6) No. 52 Gauging Blocks
(6) No. 53 Disappearing Spring-Pin Gauges
All models are equipped with Depth-of-Stroke adjustment with
indicators, Length-of-Stroke adjustment, and motor and
controls for 230/460 volt, 3 phase.
(Other 3 phase voltages also available)
hydraulic oil and a wrench are also furnished.
** Optional light curtain installed at factory add $P.O.R.

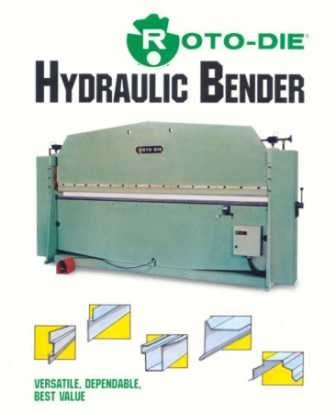

** VERSATILITY ** The Roto-Die is four precision forming
tools in one. By merely shifting the selection lever, one
operator can perform all basic sheet-metal forming
operations. No die to change. The Roto-Die hydraulic bender
forms full-length ducts, gravel stops, standing lock seams,
flashing and hemming operations -accurately and
economically. The compactness inherent in the cylindrical
die design permits acute reverse bends not possible with
conventional wide-bed machines. The Roto-Die indexes quickly
and accurately to all forming stations. Automatic detention
assures positive die alignment. Centerline machined upper
dies are instantly inter- changeable in all Roto-Die
openings without special stops or adjustments. A Roto-Die
hydraulic bender is as simple to operate as a hand break -
but has infinitely more production capacity.
** EARNS YOU MORE MONEY **
Most sheet-metal configurations can be formed with one hand
by one operator. The ram may be jogged, stopped or returned
to "up" position at any point of the stroke. It may also be
inched for accurate positioning of the work, reducing
material loss and gauge-adjustment time. Disappearing pins
are conveniently located for fast, one-man positioning in
cross-breaking (paneling) and rectangular duct forming. Pin
gauges are easily removed and relocated.
MADE IN THE USA!!
