- McClellan Park, CA, USA
- No price
- Baileigh press brakes
- 28 gal
- Stock number:
- 220V / 3-phase
- Main motor:
- 5 hp
- Gauge length:
- Oil capacity:
- 28 gal
- Return speed:
- 2.36" / sec
- Throat depth:
- Bending speed:
- 275" / sec
- Approach speed:
- 3.14" / sec
- Shipping weight:
- 6,160 lbs
- Stroke distance:
- Back gauge motor:
- 1/2 hp
- Maximum pressure:
- 50 tons
- Shipping dimensions:
- Distance between housings:
- Distance from table to ram:
- Press Brakes in United States
- Subcategory 2:
- Press, hydraulic (tons)
Gauge Length: 23.62"
Return Speed: 2.36" / sec.
Maximum Pressure: 50 tons
Oil Capacity: 28 gal
Throat Depth: 7.87"
Bending Capacity Max Length Max Thickness: 61" / .118"
Stroke Distance: 5.9"
Approach Speed: 3.14" / sec.
Back Gauge Motor: 1/2 hp
Bending Speed: .275" / sec.
Main Motor: 5 hp
Distance Between Housings: 49.21"
Distance From Table To Ram: 11.81"
Power: 220V / 3-phase
Shipping Weight: 6,160 lbs.
Shipping Dimensions: 74.80"x51.18"x86.61

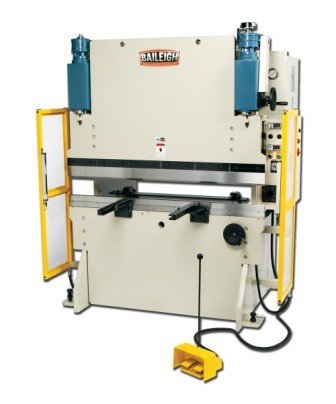

Baileigh's BP-5060 NC hydraulic sheet metal press brake is
our most popular model for the small to medium fabricator.
It has a very rigid electro welded frame of solid steel
plate offering smooth production runs that improves accuracy
of the machine.
The upper beam is actuated downward by two heavy industrial
hydraulic cylinders that are encoder controlled for
precision. The upper beam rides on a hardened track that is
coupled together by three axis of bearings. Unique to
Baileigh press brake machines, for further accuracy the beam
has a parallel mechanism that provides forced
synchronization of the top and bottom die. This ensures
better quality bends across the entire width of the machine.
This sheet metal bender is a two axis NC (numerically
controlled) unit that uses encoders on the upper beam and
the back gauge. Their positions are displayed on their own
DRO (digital readouts). Fine tuning of both axis is by
independent hand wheels. The back gauge has manual metered
adjustments to the height of the back gauge as well. Like
all of our NC press brake machines it comes with guards with
a six sensor safety curtain, front material rests and foot
pedal controls. The top beams pressure can be regulated and
the up position can be adjusted for less or more travel in
seconds. There downward hold on the beam can be held by a
simple timer. Finally there are three ways to run the
machine. The jog function is there to assist with easy set
up. Manual function is for those jobs where the operator
wants more control. Finally the automatic function is meant
for production scenarios.
All in all this hydraulic sheet metal press brake is
extremely well built, very easy to use, and will offer
decades of service to any fabrication shop.
