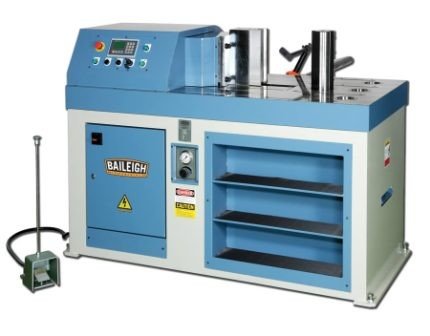

BAILEIGH HPB-78NC 78 TON, HORIZONTAL
Location:
McClellan Park, CA
Manufacturer:
Baileigh press brakes
Stroke:
13.78"

Specifications

Condition:
new
Stock number:
6592
Motor:
7.5 hp
Power:
Manual
Pressure:
78 tons
Punch height:
11.81"
Return speed:
55" / sec
Table height:
37.4"
Fixture holes:
(1) @ 4.646" dia. / (3) @ 3.268" dia
Stroke length:
13.78"
Working speed:
43" / sec
Approach speed:
1.69" / sec
Shipping weight:
4,580 lbs
Stroke accuracy:
+/- .002"
Shipping dimensions:
81" x 38" x 61"
Subcategory:
Brakes

Description

Model: HPB-78NC
Return Speed: .55" / sec.
Motor: 7.5 hp
Pressure: 78 tons
Punch Height: 11.81"
Working Speed: .43" / sec.
Stroke Accuracy: +/- .002"
Stroke Length: 13.78"
Table Height: 37.4"
Approach Speed: 1.69" / sec.
Fixture Holes: (1) @ 4.646" dia. / (3) @ 3.268" dia.
Power: Manual
Shipping Weight: 4,580 lbs.
Shipping Dimensions: 81" x 38" x 61"
DESCRIPTION:
A horizontal bending press is a machine that should be in
every metal fabrication shop. The applications for this
machine are limitless and the HPB-78NC is Baileigh
Industrial's larget horizontal bending press in its line.
The HPB-78NC uses a 220 volt three phase 7.5 motor to power
the industrial grade hydraulic system; a system that
produces 78 tons of fabrication force. The HPB-78NC is
perfect for any shop that currently has a vertical press
brake, but has smaller jobs to do. The advantage of a
horizontal bending press is when a part is bent it's lying
on its side on the perfectly machined bending plate, so it's
completely square when completed. This advantage alone can
save time and money compared to set up on a conventional
brake press for smaller parts that have to be bent
perpendicular to the beam.
All Baileigh Industrial horizontal brake presses come with
a numeric control that uses electronic encoders for
accurate measurement. These controllers allow for manual
bends or can be run in the program mode that stores up to 99
programs with up to 10 bends each. A manual back gauge is
also included for repeatability.
