Top Seller

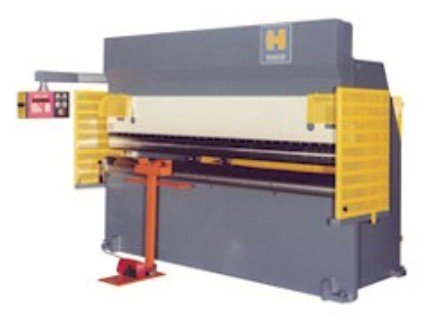

HACO HDE 165-12-10 165 Ton,
Location:
McClellan Park, CA
Manufacturer:
Haco
Model:
HDE 165-12-10
Capacity:
165 Tons
Weight:
20,200 lbs

Specifications

Condition:
new
Stock number:
1874
Fob:
Houston warehouse, TX
Length:
151"
Throat:
9.8"
Weight:
20,200 lbs
Tonnage:
165 Tons
Voltage:
220/440VAC
Capacity:
165 Tons
Front/back:
61"
Open height:
12.8"
Support arm:
$210.00/each
Payment terms:
20% with order, 80% upon installation
Curtain system:
$2,650.00 - spaced light beam and one beam
Delivery terms:
stock, subject to prior sale
Electric motor:
15 HP
Overall height:
89"
Two hand control:
*$3,500.00
Validity of offer:
90 days from November 7, 2002
Rapid return speed:
165"/min
Maximum press speed:
18"/min
Stroke (adjustable):
4.7"
Rapid approach speed:
165"/min
Three speed operation:
fast approach, slow bending, fast
Overall bending length:
144"
Extra operator's manual:
$70.00
Electrical stroke counter:
$450.00
Front operated back gauge:
*$4,380.00
T-slot in bed, price per side:
*$1,070.00
Extra microswitch for punching:
$370.00
Clear distance between housings:
124"
Manual front operated back gauge:
*$2,950.00 Motorised
Filler block 12' l x 3 " h x 3" w:
$1,800.00
Subcategory:
Brakes

Description

Model: HDE 165-12-10
Tonnage: 165 Tons
Capacity: 165 Tons
Overall bending length: 144"
Clear distance between housings: 124"
Stroke (adjustable): 4.7"
Throat: 9.8"
Open height: 12.8"
Electric motor: 15 HP
Voltage: 220/440VAC
Rapid approach speed: 165"/min
Maximum press speed: 18"/min
Rapid return speed: 165"/min
Length: 151"
Overall height: 89"
Front/back: 61"
Weight: 20,200 lbs
The Atlantic HDE Press Brake quoted belongs to a new
generation of steel fabricating equipment with several
standard features which will provide your company with safe,
accurate, dependable and high productive use which can put
your company one step ahead of your competition.
HACO-ATLANTIC, Inc., member of the HACO International Group,
builds SAFE machines conforming to ANSI B11.3 "American
National Standard for machine tools -power press brakes-
safety requirements for construction, care and use." We
deliver our machine with a safety handbook, as well as
interfacing capabilities for owner installed safety devices.
Due to the multiple purposes of a press brake, point of
operation guards should be installed by the purchaser in
accordance with Federal Safety Requirements.
PRODUCTIVITY will be increased by installing a Atlantic
Press Brake due to its versatility and easy operation of the
machine. The press brake comes standard with multi-speed
operation, simple yet accurate high speed hydraulics with
easy set ups, and conveniently
Your company will gain customer confidence resulting from
the ACCURACY the Atlantic Press Brake gives you. Our
internal mechanical stop system guarantees bending accuracy
only limited to material differences or tooling inaccuracy.
In addition to the mechanical stops, our deep sectioned bed
and ram insure minimal deflection, further adding to the
machines accuracy.
Most importantly, your machine will be DEPENDABLE. The
machine is built with top quality components.
We are confident that a decision to purchase an HDE Series
Press Brake will be one of your company's wisest business
decisions.
CONSTRUCTION:
Rugged all steel interlocked and welded construction for
maximum strength and minimum deflection. All frames are
stress relieved after welding to provide as near perfect
surfaces as possible, which in turn results in better bends.
The all-welded construction also resists torque twist that
is sometimes found in bolt-together designs.
Flush floor mount. No pit or special foundation required.
Precision bed and ram. All HDE press brakes use single,
deep-sectioned plates for the bed and ram. The ram is
fitted with more punch clamping plates and bolts than is
commonly found on other machines. This enables the operator
to easily and securely clamp small tooling segments if he is
not using one long punch. The bed is an integral part of
the machine frame and is machined in one set up in
conjunction with the ram ways and cylinder mounts. This
insures positive alignment relationships between the ram,
bed and frame for guaranteed accuracy.
The bed has a removabl
