Top Seller

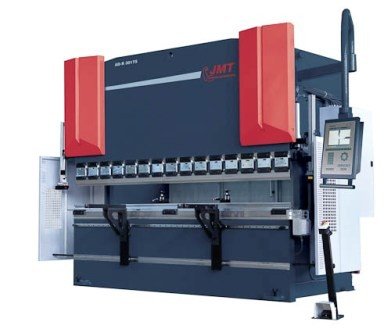

JMT AD-R 2060 66 Ton
Location:
McClellan Park, CA
Manufacturer:
JMT press brakes
Model:
AD-R 2060
Stroke:
10.4"
Capacity:
27 Gallons

Specifications

Condition:
new
Stock number:
8078
Stroke:
10.4"
Daylight:
20.87"
Bed height:
35.4"
Dimensions:
10'10"L x 5'5"W x 9'H
Motor power:
10 HP
Throat depth:
16"
Approx weight:
13,450 lbs
Bed cap width:
4"
Bending force:
66-Tons
X-axis travel:
17"
Bending length:
6'8"
Between frames:
5'7"
Oil tank capacity:
27 Gallons
X-axis speed (ipm):
590
Y-axis rapid speed:
472
B.g. fingers blocks:
2
List please call us:
916-638-7718
Y-axis return speed:
283
Sliding support arms:
2
Y-axis working speed:
23
Subcategory:
Brakes
Subcategory 2:
Press, n/c & cnc

Description

Model: AD-R 2060
Bending Length: 6'8"
Bending Force: 66-Tons
Between Frames: 5'7"
Speeds (Inches per Minute)
Y-Axis Rapid Speed: 472
Y-Axis Working Speed: 23
Y-Axis Return Speed: 283
Daylight: 20.87"
Bed Cap Width: 4"
Bed Height: 35.4"
Stroke: 10.4"
Throat Depth: 16"
Sliding Support Arms: 2
B.G. Fingers Blocks: 2
X-Axis Speed (IPM): 590
X-Axis Travel: 17"
Motor Power: 10 HP
Oil Tank Capacity: 27 Gallons
Dimensions: 10'10"L x 5'5"W x 9'H
Approx Weight: 13,450 lbs.
AD-R Series press brakes are manufactured with exceptionally
large stroke/ daylight combinations as well as high speed
ram and back gauge positioning. The production of deep boxes
and other parts requiring large clearances are produced with
ease.
STANDARD EQUIPMENT:
* 3 axis CNC:
* Y1, Y2 precision ram positioning*
* X axis back gauge
* Large trio of value:
* Large open height
* Large stroke
* Large throat depth
* Back gauge - motorized & linear guide & ball bearing
system
* Back gauge fingers - height adjustable
* Delem DA-56 CNC control unit with 2D graphics
Clamping:
* American/European section-style box punch clamps
* American-only style punch clamp available at no charge
* Quickset sliding front sheet support arms with full-length
linear guide, tilting stop and T-slot (front gauging
squaring, etc.)
* Protection covers (side and rear safety doors)
* Rear work light
* World-class hydraulic and electronic components that are
easily replaceable
* Hydraulic blocks and valves (Rexroth)
* Electronics system (Siemens, Schneider)
* High-yield plate construction
* Automatic bend sequence determination
* Automatic stretch length calculator for blank size
determination
* CNC Y1, Y2, X Axis w/Back Gauge (R1, R2 Manual Back Gauge
Finger Height)
* Control Unit - CNC Delem DA 56 - 2D Color Graphics
* Universal Wedge Style Punch Clamp for American or European
Style Punches
* Sliding sheet support Arms mounted on Linear Rail with T-
Canal and Tilting stop
* CNC controlled motorized Crowning (only on 20 ft. press
brakes)
* Large Open Height, Stroke, and Throat Depths Standard
* World class Hydraulics blocks & valves
* World class electronics system
OPTIONAL EQUIPMENT:
* CNC R Axis (Height of Back Gauge Fingers)
* Safety laser with manual F.AKAS II M -FPSC-B-C + safety
covers with switch
* Safety laser with SICK C 4000 (only for tandem) + steel
protection covers
* DFS1 laser finger protection (for bottom beam)
* Adaptive bending sensors
* Top tool American or European
* Bottom tool American or European
* Hydraulic tooling clamping systems
* Quick release clamping
* Universal die blocks
* Manual crowning
* CNC controlled motorized crowning
* 40" back gauge - back protection with light barrier
* Oil coolant
* Very reasonable tooling packages available (multi-V
tooling)
* Hydraulic tooling clamping systems
* Universal die blocks
* Additional finger blocks
* Additional sliding front arms
* Profile-W offline software
* Tooling packages
* Tandem configuration
* Akas Ram Mounted Laser Operational Guarding
* 3
