ROTO-DIE PNEUMATIC POWER OPEN-END 20
Location:
McClellan Park, CA
Manufacturer:
ROTO-DIE
Model:
PNEUMATIC POWER OPEN-END 20 GA
Capacity:
20 gauge and lighter
Weight:
500 lbs

Specifications

Condition:
new
Stock number:
3640
Bend width:
7/16" thru 1/2" Preset
Bend length:
3" thru 29-1/2"
Table height:
36"
Machine weight:
500 lbs
Mild steel capacity:
20 gauge and lighter
Strokes per minute (approx):
0 to 50
Air consumption (per stroke):
Less than 0.5 cubic feet/@
Subcategory:
Cleatbenders

Description

Model: CB-30
Mild Steel Capacity: 20 gauge and lighter
Bend Length: 3" thru 29-1/2"
Bend Width: 7/16" thru 1/2" Preset
Table Height: 36"
Air Consumption (per stroke): Less than 0.5 cubic feet/@
100 PSI
Strokes Per Minute (Approx): 0 to 50
Machine Weight: 500 lbs.

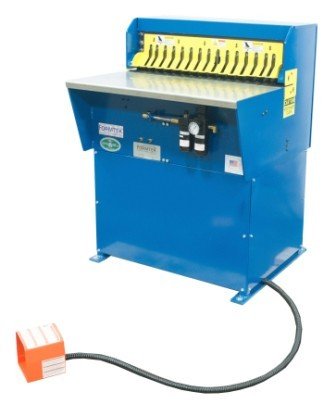

Roto - Die 's CB-30 Cleat Bender is an economical, pneumatic
bender for bending cleat on duct and fitting or similar
applications that utilize a cleat type connection, up to 20
gauge sheet metal thickness. Unlike the competition, the CB-
30 cleat bender requires no electricity, only a compressed
air line connection. The stainless steel top resists rust to
insure years or service. Unlike competitors machines, the
CB-30 has 15 forming fingers, which accommodates more
discrete combinations of duct or fitting sizes. Also, with
the open ended design, the operator can notch the sheet to
make cleats of more than 30" in length by bending in
multiple steps.
FEATURES:
-Wide jaws allow forming "
-Adjustable cleat settings
-Front-mounted quick-release valves
-Large, stainless steel feed table resists rust
-Built in America & backed with a 1-Year Factory warranty.
-Typically In Stock, available for quick delivery
