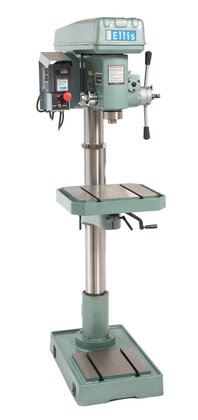

ELLIS 9400 18" VARI-SPEED DRILL
Location:
McClellan Park, CA
Manufacturer:
ELLIS
Model:
9400
Capacity:
3/4"

Specifications

Condition:
new
Stock number:
2375
Motor:
2 HP, Single Phase
Dimensions:
20"W X 29"D X 69-1/2"H
Morse taper:
No. 3
Quill diameter:
3"
Spindle speeds:
0 - 1200 RPM
Spindle travel:
5-3/8"
Column diameter:
4"
Shipping weight:
675 lbs
Spindle to base:
46-1/4"
Drills to center:
18-1/8"
Tapping capacity:
3/4"
Drilling capacities:
Steel 1-1/16"
Spindle to table (max):
27-1/4"
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: 9400 Includes Free Power Down Feed!!
Motor: 2 HP, Single Phase
CONTROL BOX:
* Infinitely variablespeed with a turn of dial
* Instantaneous electronic reversing
* Inverter Driven Variable
* Full torque at low speeds
* All solid state circuitry
* Continuous speed adjustment while in operation
Spindle Speeds: 0 - 1200 RPM
Drills to Center: 18-1/8"
Drilling Capacities: Steel 1-1/16"
Cast Iron 1-1/4"
Tapping Capacity: 3/4"
Morse Taper: No. 3
Quill Diameter: 3"
Column Diameter: 4"
Spindle Travel: 5-3/8"
Spindle to Table (MAX): 27-1/4"
Spindle to Base: 46-1/4"
Shipping Weight: 675 lbs
Dimensions: 20"W X 29"D X 69-1/2"H
TABLE:
Production type:
* T-Slotted 15 7/8" X 17 7/8"
* 2 Slots for 1/2" t-bolts
* Ground working surface
* Coolant trough
BASE:
T-Slotted
* 16 3/8" x 26 5/8"
* 2 slots for 1/2" t-bolts
* Ground working surface
FEATURES:
* POWER DOWN FEED!
* Variable speed from 0 to 1200 RPM
* Adjust speeds while operating in the material
* High torque at low rpm speeds
* Instantaneous reversing for tapping
* Tapping head is not needed
* Machine tap goes into ball bearing chuck
* Can tap either left or right handed threads
* Drill head and table rotate 360-degree around column
* Smooth operating table raiser
* Fully enclosed spindle
* Quill lock and depth control
* Same ball bearing chuck holds both drill and tap
* Speed control
* Continuous speed adjustment while in operation
* Instantaneous reversing for tapping
* One turn on knob for adjusting speed (0 to 1200 RPM)
OPTIONAL ACCESSORIES:
$400.00 Ellis DrillPrses Cross Feed Table & Adaptor
$175.00 Ball Bearing Drill Chuck with Arbor
$325.00 6-1/2" Drill Press Vise
$275.00 4-1/2" Drill Press Vise
