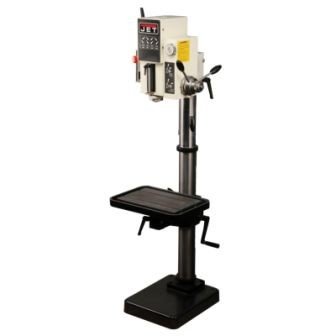

J-A2608M-PF2 20" JET/ARBOGA GEAREDHEAD DRILL
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
J-A2608M-PF2
Capacity:
5/8

Specifications

Condition:
new
Stock number:
7961
Motor:
1 - 1-1/2HP, 220VAC, 3ph
Width:
66 inch
Height:
30 inch
Length:
22 inch
Net weight:
600 pound
Quill feed:
Power
Stock number:
354030
Spindle taper:
MT-3
Table dimensions:
15-3/4 x 19-3/4
Table size (in.):
15-3/4 x 19-3/4
Overall dimensions:
24 x 22 x 72
Quill travel (in.):
5-1/8
Table travel (in.):
24-1/2
Number of powerfeeds:
4
Quill diameter (in.):
2-3/8
Spindle travel (in.):
5-1/8
Column diameter (in.):
3-15/16
Number of spindle speeds:
8
Quill down feed rates (ipr):
004, .006, .009, .012
Base dimensions (lxwxh/ in.):
24 x 22
Range of spindle speeds (rpm):
Low-130, 260, 420, 840;
T-slots number and size (in.):
2 x 9/16
Drills to center of circle (in):
20
Vertical movement of drill head:
8-5/8
Tapping capacity cast iron (in.):
5/8
Vertical movement of table (in.):
24-1/2
Drilling capacity cast iron (in.):
1-3/8
Tapping capacity mild steel (in.):
1/2
Work table weight capacity (lbs.):
350
Drilling capacity mild steel (in.):
1-1/4
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: J-A2608M-PF2
Stock Number: 354030
Motor: 1 - 1-1/2HP, 220VAC, 3ph
Number of Spindle speeds: 8
Range of Spindle Speeds (RPM): Low-130, 260, 420, 840;
High-535, 1070, 1745, 3480
Spindle Taper: MT-3
Quill Diameter (in.): 2-3/8
Max Distance Spindle to Table ( in.): 35-5/8
T-Slots Number and Size (in.): 2 x 9/16
Work Table Weight Capacity (lbs.): 350
Column Diameter (in.): 3-15/16
Base Dimensions (LxWxH/ in.): 24 x 22
Drilling Capacity Cast Iron (in.): 1-3/8
Drilling Capacity Mild Steel (in.): 1-1/4
Tapping Capacity Cast Iron (in.): 5/8
Tapping Capacity Mild Steel (in.): 1/2
Quill Travel (in.): 5-1/8
Quill Down feed Rates (IPR): .004, .006, .009, .012
Table Size (in.): 15-3/4 x 19-3/4
Drills to Center of Circle (in): 20
Table Travel (in.): 24-1/2
Max Distance - Spindle to Table (in): 35-5/8
Quill Feed: Power
Spindle Travel (in.): 5-1/8
Number of Powerfeeds: 4
Vertical Movement of Drill Head: 8-5/8
Vertical Movement of Table (in.): 24-1/2
Table Dimensions: 15-3/4 x 19-3/4
Overall Dimensions: 24 x 22 x 72
Height: 30 inch
Width: 66 inch
Length: 22 inch
Net Weight: 600 pound
FEATURES:
* Helical gears for smooth quiet operation
* Quick release drill ejector
* Safety latch to prevent head dropping when unclamped
* Eight spindle speeds
* T-Slotted table with coolant through
* Head and table rotate 360 degrees around column
* 2 position, High/Low switch
* 3-15/16" Column diameter
* English/Metric depth gauge
* Both Head & Table can be raised or lowered
* Head and Table can be rotated 360 degrees.
* Steel column
* Extra long quill movement
* Adjustable taper bearings mounted in the end of the quill
* Fiber & Steel gears which do not require oil bath and
allows for easy speed changes
* Drill head and table can be raised and lowered
2-YEAR FACTORY WARRANTY INCLUDED!!
