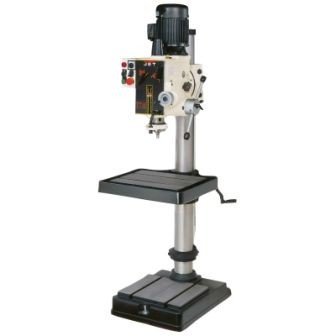

JET GHD-20PFT 20" GEARHEAD DRILL
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
GHD-20PFT
Capacity:
13/16

Specifications

Condition:
new
Stock number:
7964
Auto:
4-1/4
Motor:
2HP, 230V, 3Ph, 2-speed
Width:
29 inch
Height:
76 inch
Length:
32 inch
Net weight:
708 pound
Swing (in.):
20
Stock number:
354026
Spindle taper:
MT-3
Table size (in.):
21-3/4 x 19-1/2
Overall dimensions:
32 x 24 x 71
Quill travel (in.):
4-1/2
Number of powerfeeds:
3
Quill diameter (in.):
3
Spindle travel (in.):
4-1/2 Manual
T-slot centers (in.):
9
Base work table (in.):
15-1/4 x 13
Column diameter (in.):
4-1/2
Number of spindle speeds:
12
Range of spindle speeds (rpm):
120, 260, 460, 900, 1600
T-slots number and size (in.):
2 x 5/8
Base slots number & size (in.):
2 x 5/8
Distance base to spindle (in.):
44-5/16
Spindle distance to base (in.):
44-5/16
Drills to center of circle (in):
20
Distance column to spindle (in.):
10
Tapping capacity cast iron (in.):
13/16
Drilling capacity cast iron (in.):
1-1/2
Tapping capacity mild steel (in.):
1/2
Work table weight capacity (lbs.):
275
Drilling capacity mild steel (in.):
1-1/4
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: GHD-20PFT
Stock Number: 354026
Motor: 2HP, 230V, 3Ph, 2-speed
Number of Spindle speeds: 12
Range of Spindle Speeds (RPM): 120, 260, 460, 900, 1600,
3000, 60, 130, 230, 450, 800, 1500
Spindle Taper: MT-3
Quill Diameter (in.): 3
Max Distance Spindle to Table ( in.): 30-1/2
T-Slots Number and Size (in.): 2 x 5/8
T-Slot Centers (in.): 9
Work Table Weight Capacity (lbs.): 275
Column Diameter (in.): 4-1/2
Drilling Capacity Cast Iron (in.): 1-1/2
Drilling Capacity Mild Steel (in.): 1-1/4
Tapping Capacity Cast Iron (in.): 13/16
Tapping Capacity Mild Steel (in.): 1/2
Quill Travel (in.): 4-1/2
Quill Travel w/ Powerfeed engaged (in.): .004, .007, .01
Distance Base to Spindle (in.): 44-5/16
Table Size (in.): 21-3/4 x 19-1/2
Distance Column to Spindle (in.): 10
Drills to Center of Circle (in): 20
Spindle Distance to Base (in.): 44-5/16
Swing (in.): 20
Base Work Table (in.): 15-1/4 x 13
Spindle Travel (in.): 4-1/2 Manual
Auto: 4-1/4
Number of Powerfeeds: 3
Base Slots Number & Size (in.): 2 x 5/8
Overall Dimensions: 32 x 24 x 71
Height: 76 inch
Width: 29 inch
Length: 32 inch
Net Weight: 708 pound
FEATURES:
* 20" Geared head drilling & tapping presses
* Heavy-duty design allows a variety of precision drilling
and tapping applications
* Easy to read internal depth gauge
* Three power down feeds
* Calibrated fine down feed built-in
* Built-in spindle lock
* Head tilts left or right
* Easy accessible table raiser
* Large production table and T-slotted base
STANDARD EQUIPMENT:
* Integrated tapping and reversing controls
* T-slotted worktable
* Drill chuck arbor
* Draw bar
* TEFC Motor
2-YEAR FACTORY WARRANTY INCLUDED!!
