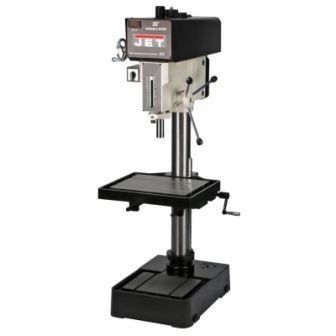

JET J-2221VS 20" VARIABLE SPEED
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
J-2221VS
Capacity:
1-1/4

Specifications

Condition:
new
Stock number:
8014
Motor (hp):
2 HP, 115/230V, 1Ph
Stock number:
354221
Style (type):
Variable
Prewired (v.):
115 *Cord Not Provided
Weight (lbs.):
715
Table travel (in.):
18
Spindle travel (in.):
6
T-slot centers (in.):
7-7/16
Base dimensions (in.):
27-1/2 x 19-1/4
Base work table (in.):
14-3/4 x 11-13/16
Column diameter (in.):
4-1/2
Number of spindle speeds:
Variable
Table size (l x w) (in.):
18-1/8 x 14-3/4
Spindle taper (in. x tpi):
MT-3
Range of spindle speeds (rpm):
300 - 2,000
T-slots number and size (in.):
2 & 5/8
Base slots number & size (in.):
2 & 5/8
Spindle distance to base (in.):
43-5/16
Drills to center of circle (in):
20
Distance column to spindle (in.):
10-7/16
Drilling capacity cast iron (in.):
1-1/4
Work table weight capacity (lbs.):
176
Drilling capacity mild steel (in.):
1
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: J-2221VS
Stock Number: 354221
Style (Type): Variable
Drills to Center of Circle (in): 20
Drilling Capacity Cast Iron (in.): 1-1/4
Drilling Capacity Mild Steel (in.): 1
Distance Column to Spindle (in.): 10-7/16
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 300 - 2,000
Column Diameter (in.): 4-1/2
Spindle Taper (in. x TPI): MT-3
Spindle Travel (in.): 6
Spindle Distance to Base (in.): 43-5/16
Spindle Distance to Table (max.) (in.): 30-1/4
Table Size (L x W) (in.): 18-1/8 x 14-3/4
Table Travel (in.): 18
T-Slots Number and Size (in.): 2 & 5/8
T-Slot Centers (in.): 7-7/16
Work Table Weight Capacity (lbs.): 176
Base Dimensions (in.): 27-1/2 x 19-1/4
Base Work Table (in.): 14-3/4 x 11-13/16
Base Slots Number & Size (in.): 2 & 5/8
Motor (HP): 2 HP, 115/230V, 1Ph
Prewired (V.): 115 *Cord Not Provided
Overall Dimensions (L x W x H) (in.): 37 x 27 x 77
Weight (lbs.): 715
All the precision operation and control on a heavy-duty cast
iron base. Variable speed spindles, front mounted positive
control depth stop and other features that enhance overall
operation make these JET 20" Variable Speed Drill Presses a
machinist's first choice.
FEATURES:
* Variable spindle speeds from 300 to 2000 RPM
* External #3 Morse Taper
* Front mounted positive control depth stop
* 6" Quill travel
* Massive 3" quill diameter
* Heavy duty cast iron design
* Large precision ground T-Slot production table for easy
set ups
* Front or side rack and worm gear table raiser
* Table rotates 360 around the column
* Machined T-Slotted base
* Head is massively constructed for more accuracy and
rigidity
2-YEAR FACTORY WARRANTY INCLUDED!!
