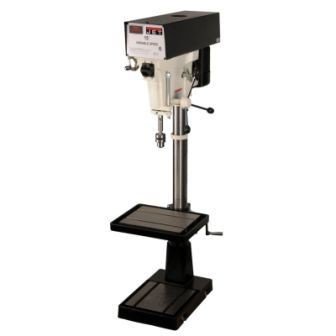

JET J-A5818 15" VARIABLE SPEED
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
J-A5818
Capacity:
5/8

Specifications

Condition:
new
Stock number:
8017
Motor (hp):
1 HP, 230/460V, 3Ph
Stock number:
354551
Style (type):
Variable
Prewired (v.):
230
Weight (lbs.):
426
Table travel (in.):
16-3/4
Spindle travel (in.):
6
T-slot centers (in.):
5-5/16
Base dimensions (in.):
20-7/16 x 14-3/16
Base work table (in.):
12-1/8 x 11-13/16
Column diameter (in.):
3
Number of spindle speeds:
Variable
Table size (l x w) (in.):
15 x 18
Spindle taper (in. x tpi):
MT-2
Range of spindle speeds (rpm):
400 - 5,000
T-slots number and size (in.):
2 & 1/2
Base slots number & size (in.):
2 & 1/2
Spindle distance to base (in.):
44-1/2
Drills to center of circle (in):
15
Distance column to spindle (in.):
7-1/2
Drilling capacity cast iron (in.):
5/8
Work table weight capacity (lbs.):
90
Drilling capacity mild steel (in.):
1/2
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: J-A5818
Stock Number: 354551
Style (Type): Variable
Drills to Center of Circle (in): 15
Drilling Capacity Cast Iron (in.): 5/8
Drilling Capacity Mild Steel (in.): 1/2
Distance Column to Spindle (in.): 7-1/2
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 400 - 5,000
Column Diameter (in.): 3
Spindle Taper (in. x TPI): MT-2
Spindle Travel (in.): 6
Spindle Distance to Base (in.): 44-1/2
Spindle Distance to Table (max.) (in.): 25-3/4
Table Size (L x W) (in.): 15 x 18
Table Travel (in.): 16-3/4
T-Slots Number and Size (in.): 2 & 1/2
T-Slot Centers (in.): 5-5/16
Work Table Weight Capacity (lbs.): 90
Base Dimensions (in.): 20-7/16 x 14-3/16
Base Work Table (in.): 12-1/8 x 11-13/16
Base Slots Number & Size (in.): 2 & 1/2
Motor (HP): 1 HP, 230/460V, 3Ph
Prewired (V.): 230
Overall Dimensions (L x W x H) (in.): 30 x 20 x 71
Weight (lbs.): 426
These JET Drill Presses use a variable-speed motor with the
stepped-pulley system, and come equipped with a continuously
variable transmission. This enables use at a wide range of
speeds, as well as the ability to change speed during
operation. A scale-marked hand wheel that matches the
desired machine speed is mounted to a reduction gearing
system for precise operator control. This adjusts the
gearing ratio between the motor's fixed pulley and the
output shaft's variable pulley, changing the speed of the
chuck. A tensioner pulley is implemented in the belt
transmission to take up or release the slack in the belt as
the speed changes.
FEATURES:
* Speeds from 400 to 5000 RPM
* Handwheel adjustment sets the speeds
* Large 2-1/4" quill allows greater accuracy
* 3" column diameter for maximum spindle stiffness
* 6" stroke for deep hole applications
* Accurate depth stop for precise hole depths
* 1/2" drill chuck and arbor
* Safety collar
2-YEAR FACTORY WARRANTY INCLUDED!!
