Top Seller

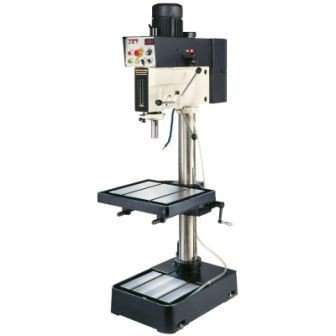

JET ELECTRONIC VARI-SPEED DRILL 20",
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
ELECTRONIC VARI-SPEED DRILL
Capacity:
7/8

Specifications

Condition:
new
Stock number:
8012
Motor (hp):
2 HP, 230V Only, 3Ph
Stock number:
354210
Style (type):
Variable
Prewired (v.):
230
Weight (lbs.):
722
Table travel (in.):
18
Spindle travel (in.):
6
T-slot centers (in.):
7-7/16
Base dimensions (in.):
27-1/2 x 19-1/4
Base work table (in.):
14-3/4 x 11-13/16
Column diameter (in.):
4-1/2
Number of spindle speeds:
Variable
Table size (l x w) (in.):
18-1/8 x 14-3/4
Spindle taper (in. x tpi):
MT-3
Range of spindle speeds (rpm):
65 - 2,000
T-slots number and size (in.):
2 & 5/8
Base slots number & size (in.):
2 & 5/8
Spindle distance to base (in.):
43-5/16
Drills to center of circle (in):
20
Distance column to spindle (in.):
10-7/16
Tapping capacity cast iron (in.):
7/8
Drilling capacity cast iron (in.):
1-1/2
Tapping capacity mild steel (in.):
3/4
Work table weight capacity (lbs.):
230
Drilling capacity mild steel (in.):
1-3/8
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: JDP-20EVS/230
Stock Number: 354210
Style (Type): Variable
Drills to Center of Circle (in): 20
Drilling Capacity Cast Iron (in.): 1-1/2
Drilling Capacity Mild Steel (in.): 1-3/8
Tapping Capacity Cast Iron (in.): 7/8
Tapping Capacity Mild Steel (in.): 3/4
Distance Column to Spindle (in.): 10-7/16
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 65 - 2,000
Column Diameter (in.): 4-1/2
Spindle Taper (in. x TPI): MT-3
Spindle Travel (in.): 6
Spindle Distance to Base (in.): 43-5/16
Spindle Distance to Table (max.) (in.): 30-1/4
Table Size (L x W) (in.): 18-1/8 x 14-3/4
Table Travel (in.): 18
T-Slots Number and Size (in.): 2 & 5/8
T-Slot Centers (In.): 7-7/16
Work Table Weight Capacity (lbs.): 230
Base Dimensions (in.): 27-1/2 x 19-1/4
Base Work Table (in.): 14-3/4 x 11-13/16
Base Slots Number & Size (in.): 2 & 5/8
Motor (HP): 2 HP, 230V Only, 3Ph
Prewired (V.): 230
Overall Dimensions (L x W x H) (in.): 37 x 37 x 83
Weight (lbs.): 722
JET innovation for smooth, quiet operation that delivers
superior results. This 20" EVS Drill Press line is among the
very best you can add to your shop operation. When the job
demands perfection, perfection is what you get when you put
JET on the job.
FEATURES:
* 20" ELECTRONIC VARIABLE SPEED DRILL PRESSES
* Runs quieter and smoother than a conventional variable
speed head
* 230V model can run on single phase power
* Low maintenance head has less moving parts
* Incorporates a high-low gear box to maintain low speed
torque
* Chrome molybdenum gears are hardened, ground, and shaved
* Quiet running and longer life
* Speed can be adjusted in each range during operation
* LED spindle RPM readout is conveniently mounted
* Tapping mode allows instantaneous spindle reversal
* Easy to read internal depth gauge
* Extra large emergency stop button adds to safe operation
* Table can be raised from the front or side
* Large production table and T-slotted dish-in base
STANDARD EQUIPMENT:
* Integrated tapping and reversing controls
* Complete coolant system
* T-slotted work table
2-YEAR FACTORY WARRANTY INCLUDED!!
