Top Seller

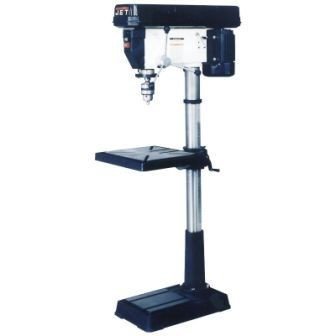

JET FLOOR DRILL PRESS 20",
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
FLOOR DRILL PRESS
Capacity:
1

Specifications

Condition:
new
Stock number:
8041
Motor (hp):
1-1/2 HP, 115/230V, 1 Ph
Stock number:
354170
Style (type):
Variable
Prewired (v.):
115
Weight (lbs.):
282
Table travel (in.):
21-1/2
Spindle travel (in.):
4-5/8
T-slot centers (in.):
3-1/2
Base dimensions (in.):
13-3/4 x 22-3/4
Base work table (in.):
13 x 8-1/2
Column diameter (in.):
3-3/8
Number of spindle speeds:
12
Table size (l x w) (in.):
18-1/2 x 16
Spindle taper (in. x tpi):
MT-3
Range of spindle speeds (rpm):
150 - 4,200
T-slots number and size (in.):
6 & 1/2
Base slots number & size (in.):
2 & 5/8
Spindle distance to base (in.):
46-3/4
Drills to center of circle (in):
20
Distance column to spindle (in.):
10
Drilling capacity cast iron (in.):
1
Work table weight capacity (lbs.):
80
Drilling capacity mild steel (in.):
3/4
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: JDP-20MF
Stock Number: 354170
Style (Type): Variable
Drills to Center of Circle (in): 20
Drilling Capacity Cast Iron (in.): 1
Drilling Capacity Mild Steel (in.): 3/4
Distance Column to Spindle (in.): 10
Number of Spindle Speeds: 12
Range of Spindle Speeds (RPM): 150 - 4,200
Column Diameter (in.): 3-3/8
Spindle Taper (in. x TPI): MT-3
Spindle Travel (in.): 4-5/8
Spindle Distance to Base (in.): 46-3/4
Spindle Distance to Table (max.) (in.): 29-1/8
Table Size (L x W) (in.): 18-1/2 x 16
Table Travel (in.): 21-1/2
T-Slots Number and Size (in.): 6 & 1/2
T-Slot Centers (in.): 3-1/2
Work Table Weight Capacity (lbs.): 80
Base Dimensions (in.): 13-3/4 x 22-3/4
Base Work Table (in.): 13 x 8-1/2
Base Slots Number & Size (in.): 2 & 5/8
Motor (HP): 1-1/2 HP, 115/230V, 1 Ph
Prewired (V.): 115
Overall Dimensions (L x W x H) (in.): 33-1/2 x 18-1/2 x 67
Weight (lbs.): 282
Accuracy, stability and versatility are the benchmark
features of the JET 15" and 20" Drill Presses. This high
quality line of JET Drill Presses offer a greater range in
spindle speeds than other machines of this class. JET backs
their machines with the industry-leading Two Year Warranty.
FEATURES:
* 20" FLOOR DRILL PRESS
* Hinged metal belt and pulley cover coupled with quick
adjustment motor mount allow rapid changing of spindle
speeds
* Rotating, 45 tilting, crank-operated worktable with
quick release clamp
* On/off switch located on front of the drill press head
* A 1/2" diameter external positive depth stop with three
nut locking feature for quick adjustment
* Adjustable tension spindle return spring
* Spindle is supported by high quality ball bearings
* Built-in work lamp on all models, bulb not included.
* Drill chuck and key included
2-YEAR FACTORY WARRANTY INCLUDED!!
