Top Seller

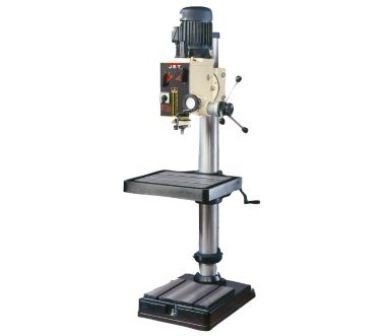

JET GEARHEAD DRILL PRESS 20",
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
GEARHEAD DRILL PRESS
Capacity:
1-1/2

Specifications

Condition:
new
Stock number:
7965
Motor:
2HP, 230V, 3PH, 2 Speed
Stock number:
354020
Spindle taper:
MT-3
Table size (in.):
21-3/4 x 19-1/2
Net weight (lbs.):
660
T-slot centers (in.):
9
Base work table (in.):
15-1/4 x 13
Column diameter (in.):
4-1/2
Drills to center (in.):
20
Base dimensions (in./lxwxh):
26 x 18 x 5
Spindle travel (in.) manual:
5
Range of spindle speeds (rpm):
Low 60, 130, 230, 450, 800
T-slots number and size (in.):
2 & 5/8
Base slots number & size (in.):
2 & 5/8
Overall dimensions (in./lxwxh):
32 x 24 x 71
Spindle distance to base (in.):
44-15/16
Distance column to spindle (in.):
10
Drilling capacity cast iron (in.):
1-1/2
Work table weight capacity (lbs.):
275
Drilling capacity mild steel (in.):
1-1/4
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: GHD-20
Stock Number: 354020
Drills to Center (in.): 20
Drilling Capacity Cast Iron (in.): 1-1/2
Drilling Capacity Mild Steel (in.): 1-1/4
Column Diameter (in.): 4-1/2
Distance Column to Spindle (in.): 10
Range of Spindle Speeds (RPM): Low 60, 130, 230, 450, 800,
1500; High 120, 260, 460, 900, 1600, 3000
Spindle Taper: MT-3
Spindle Travel (in.) Manual: 5
Spindle Travel (in.) Auto: N/A
Spindle Distance to Base (in.): 44-15/16
Spindle Distance to Table (max./in.): 30-1/2
Table Size (in.): 21-3/4 x 19-1/2
T-Slots Number and Size (in.): 2 & 5/8
T-slot Centers (in.): 9
Work Table Weight Capacity (lbs.): 275
Base Dimensions (in./LxWxH): 26 x 18 x 5
Base Work Table (in.): 15-1/4 x 13
Base Slots Number & Size (in.): 2 & 5/8
Motor: 2HP, 230V, 3PH, 2 Speed
Overall Dimensions (in./LxWxH): 32 x 24 x 71
Net Weight (lbs.): 660
JET Geared Head Drill Presses are ideal for repetitive
drilling in a wide variety of materials. These drill presses
are equipped with helical gears for smooth and quiet
operation, a quick-release drill ejector and English/Metric
depth gauge. T-slotted table, 8 spindle speeds, and a head
and table that rotate 360 around the column enhance overall
use and supply premier results.
FEATURES:
* Heavy-duty design allows a variety of precision drilling
applications
* Easy to read internal depth gauge
* Calibrated fine down feed built-in
* Built-in spindle lock
* Head tilts left or right
* Easy accessible table raiser
* Large production table and T-slotted base
STANDARD EQUIPMENT:
* T-slotted worktable
* Drill chuck arbor
* Draw bar
2-YEAR FACTORY WARRANTY INCLUDED!!
