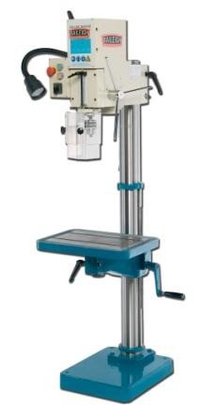

BAILEIGH DP-1000G GEAR-DRIVEN DRILL PRESS
Location:
McClellan Park, CA
Manufacturer:
Baileigh presses
Model:
DP-1000G
Capacity:
1"

Specifications

Condition:
new
Stock number:
6787
Motor:
1.5 hp
Power:
110V
Table size:
19.75" x 13.75"
Spindle speed:
125, 420, 535, 1740 rpm
Spindle taper:
MT 3
Drill capacity:
1"
Spindle travel:
5.3"
Shipping weight:
484 lbs
Tapping capacity:
5/8"
Shipping dimensions:
66" x 22" x 28"
Base dimensions l x w:
15.5" x 19.5"
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: DP-1000G
Table Size: 19.75" x 13.75"
Motor: 1.5 hp
Spindle Speed: 125, 420, 535, 1740 rpm
Spindle Taper: MT 3
Tapping Capacity: 5/8"
Power: 110V
Shipping Weight: 484 lbs.
Drill Capacity: 1"
Spindle Travel: 5.3"
Base Dimensions L x W: 15.5" x 19.5"
Shipping Dimensions: 66" x 22" x 28"
DESCRIPTION:
Baileigh's DP-1000G is a very economical gear head drill
press that can run in any fabrication or machine shop
considering it requires 110 volts of power. It can drill
through mild steel with up to a 1" drill bit. It comes
standard with a heavy cast iron base and adjustable table.
To reduce flexing this gear head drill press uses an ample
column with a diameter of 4". The gear head also can be
adjusted up or down on the column. The transmission offers
multiple speeds that are perfect for drilling and tapping an
array of different materials. The DP-1000G comes standard
with a halogen light and protective guarding.
This metal drill press is built to the quality standards you
have come accustomed to with Baileigh Industrial products.
