Top Seller
BAILEIGH DP-1250VS 20" VARI-SPEED DRILL
Location:
McClellan Park, CA
Manufacturer:
Baileigh presses
Model:
DP-1250VS
Capacity:
1.5"

Specifications

Condition:
new
Stock number:
6450
Power:
220V / 1-phase
Swing:
20.8"
Main motor:
2 hp
Table size:
22" x 18.5"
Table slot:
625"
Spindle taper:
MT 4
Drill capacity:
1.5"
Quill diameter:
2.95"
Spindle travel:
5.9"
Column diameter:
4.52"
Shipping weight:
847 lbs
Tapping capacity:
3/4"
Spindle speed low:
85 - 540 rpm
Spindle speed high:
245 - 2000 U / 1 min
Shipping dimensions:
40" x 25" x 83"
Spindle nose to base:
48.22"
Base dimensions l x w:
27" x 19"
Spindle nose to table:
36.41"
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: DP-1250VS
Table Size: 22" x 18.5"
Quill Diameter: 2.95"
Spindle Nose to Table: 36.41"
Spindle Nose to Base: 48.22"
Spindle Speed High: 245 - 2000 U / 1 min
Spindle Speed Low: 85 - 540 rpm
Spindle Taper: MT 4
Table Slot: .625"
Tapping Capacity: 3/4"
Main Motor: 2 hp
Power: 220V / 1-phase
Shipping Weight: 847 lbs.
Swing: 20.8"
Drill Capacity: 1.5"
Spindle Travel: 5.9"
Column Diameter: 4.52"
Base Dimensions L x W: 27" x 19"
Shipping Dimensions: 40" x 25" x 83"
DESCRIPTION:

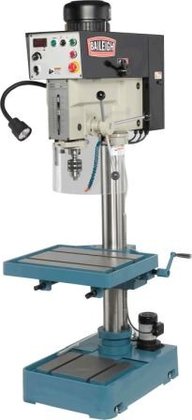

20" Heavy Duty Drill Press Baileigh's DP-1250VS heavy duty
drill press has a wide column for extra support to reduce
flexing during heavy drilling sessions at maximum capacity,
being 1-1/4" diameter mild steel. This machine has a
powerful inverter driven head that is controlled through a
speed potentiometer dial and digital read out for displaying
actual quill RPM. This variable speed drill press uses a
heavy #4 Morse Taper to transfer the power from the spindle
to the quill. To further the rigidity the base and table
are made of a heavy casting with very large T-Slots to
secure vise or material. The base includes a powerful
coolant system that is sprayed out at the quill behind a
quality splash and safety guard. The coolant system
increases drill bit and tap life.
