Top Seller

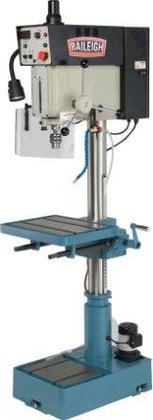

BAILEIGH DP-1000VS 16" VARI-SPEED DRILL
Location:
McClellan Park, CA
Manufacturer:
Baileigh presses
Model:
DP-1000VS
Capacity:
1"

Specifications

Condition:
new
Stock number:
6223
Power:
220V Single Phase
Main motor:
2 hp
Table size:
18.1" x 14.2"
Table slot:
625"
Spindle speed:
150 - 3000 rpm
Spindle taper:
MT 3
Quill diameter:
2.44"
Spindle travel:
5.3"
Column diameter:
3.62"
Shipping weight:
579 lbs
Shipping dimensions:
48" x 44" x 82"
Drill capacity steel:
1"
Spindle nose to base:
45.3"
Base dimensions l x w:
27" x 19"
Spindle nose to table:
23.8"
Tapping capacity steel:
5/8"
Drill capacity cast iron:
1.25"
Tapping capacity cast iron:
3/4"
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: DP-1000VS
Table Size: 18.1" x 14.2"
Quill Diameter: 2.44"
Spindle Nose to Table: 23.8"
Spindle Nose to Base: 45.3"
Spindle Speed: 150 - 3000 rpm
Spindle Taper: MT 3
Table Slot: .625"
Tapping Capacity Cast Iron: 3/4"
Tapping Capacity Steel: 5/8"
Main Motor: 2 hp
Drill Capacity Cast Iron: 1.25"
Drill Capacity Steel: 1"
Power: 220V Single Phase
Shipping Weight: 579 lbs.
Spindle Travel: 5.3"
Column Diameter: 3.62"
Base Dimensions L x W: 27" x 19"
Shipping Dimensions: 48" x 44" x 82"
DESCRIPTION:
16" Drill Press Machine The DP-1000VS variable speed drill
press has a very wide column to eliminate flexing when
drilling at full capacity. The base and table are made from
a very rigid casting adding to the strength of this 1"
maximum capacity drilling machine. The inverter driven head
allows the machinist or fabricator to run tooling at the
proper speed for each drill or tap size available. Running
at the exact speed extends tooling life, something that
can't be accomplished on other drills like pulley driven
styles. The DP-1000VS drill press also comes standard with
a coolant system, guarding and a halogen light.
