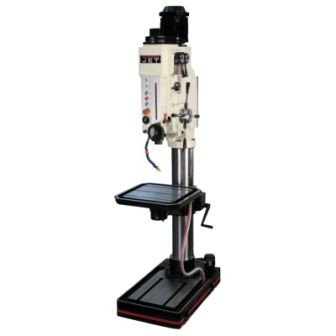

JET J-2350 28" DIRECT DRIVE
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
J-2350
Capacity:
1-3/4

Specifications

Condition:
new
Stock number:
7949
Motor:
3 HP, 230/460V, 3 Ph, Prewired 230V
Width:
24.5 inch
Height:
46.5 inch
Length:
102 inch
Net weight:
1810 pound
Stock number:
354050
Spindle taper:
MT-4
Table dimensions:
22 X 19
Table size (in.):
22 x 19
Quill travel (in.):
9
Number of powerfeeds:
4
Quill diameter (in.):
3.228
Spindle travel (in.):
9
Number of spindle speeds:
9
Quill down feed rates (ipr):
004, .008, .012, .016
Base dimensions (lxwxh/ in.):
102 x 25 x 47
Range of spindle speeds (rpm):
82, 120, 180, 240, 354, 528
T-slots number and size (in.):
3 x 5/8
Base slots number & size (in.):
2 x 5/8
Spindle distance to base (in.):
49
Drills to center of circle (in):
28
Distance column to spindle (in.):
14
Tapping capacity cast iron (in.):
1-3/4
Drilling capacity cast iron (in.):
1-7/8
Tapping capacity mild steel (in.):
1-9/16
Work table weight capacity (lbs.):
400
Drilling capacity mild steel (in.):
1-3/4
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: J-2350
Stock Number: 354050
Motor: 3 HP, 230/460V, 3 Ph, Prewired 230V
Number of Spindle speeds: 9
Range of Spindle Speeds (RPM): 82, 120, 180, 240, 354, 528,
678, 1026, 1524
Spindle Taper: MT-4
Quill Diameter (in.): 3.228
Max Distance Spindle to Table ( in.): 30-1/2
T-Slots Number and Size (in.): 3 x 5/8
Work Table Weight Capacity (lbs.): 400
Base Dimensions (LxWxH/ in.): 102 x 25 x 47
Drilling Capacity Cast Iron (in.): 1-7/8
Drilling Capacity Mild Steel (in.): 1-3/4
Tapping Capacity Cast Iron (in.): 1-3/4
Tapping Capacity Mild Steel (in.): 1-9/16
Quill Travel (in.): 9
Quill Travel w/ Powerfeed engaged (in.): 9
Quill Down feed Rates (IPR): .004, .008, .012, .016
Table Size (in.): 22 x 19
Distance Column to Spindle (in.): 14
Drills to Center of Circle (in): 28
Spindle Distance to Base (in.): 49
Max Distance - Spindle to Table (in): 30-1/2
Spindle Travel (in.): 9
Number of Powerfeeds: 4
Base Slots Number & Size (in.): 2 x 5/8
Table Dimensions: 22 X 19
Spindle Distance to Table (max./in.): 30-1/2
Spindle Distance to Table (min./in.): 2.67
Height: 46.5 inch
Width: 24.5 inch
Length: 102 inch
Net Weight: 1810 pound
FEATURES:
* Direct drive round column drill press with mechanical
clutch
* Two speed forward and reverse switch
* Mechanical powerfeed clutch engagement
* Heavy duty quill and spindle
* Tempered, ground spindle with internal taper mounted in
precision bearings for maximum accuracy, minimizing
deflection
* Speed and feed selectors are located on one side of the
drill head for convenience and ease of operation
* Oversized base is precision ground with T-slots for
added versatility and stability
* Spindle gear box is equipped with steel hardened,
ground, shafts and gears
* Spindle gear box is internally lubricated in a
continuous oil bath for long term smooth operation.
* Tilting table, 45 left and right
* Powerfeed can be disengaged manually
STANDARD EQUIPMENT:
* Automatic tool ejector
* Manual quill lock
* Coolant system
* Low voltage at switch
2-YEAR FACTORY WARRANTY INCLUDED!!
