Top Seller

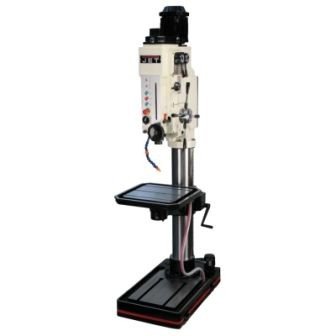

JET J-2360 30" DIRECT DRIVE
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
J-2360
Capacity:
2

Specifications

Condition:
new
Stock number:
7950
Auto:
003, .006, .010, .014
Motor:
4 HP, 230/460V, 3 Ph, Prewired 230V
Width:
30 inch
Height:
53 inch
Length:
108 inch
Net weight:
2405 pound
Quill feed:
4
Swing (in.):
15
Stock number:
354051
Spindle taper:
MT-4
Table dimensions:
22 X 19
Table size (in.):
22 x 19
Quill travel (in.):
10
Number of powerfeeds:
4
Quill diameter (in.):
3.465
Spindle travel (in.):
10
Number of spindle speeds:
9
Quill down feed rates (ipr):
003, .006, .010, .014
Base dimensions (lxwxh/ in.):
108 x 30 x 53
Range of spindle speeds (rpm):
55, 98, 156, 198, 346, 456
T-slots number and size (in.):
3 x 5/8
Base slots number & size (in.):
5/8
Distance base to spindle (in.):
50
Spindle distance to base (in.):
50
Distance column to spindle (in.):
15
Tapping capacity cast iron (in.):
2
Drilling capacity cast iron (in.):
2-5/32
Tapping capacity mild steel (in.):
1-3/4
Work table weight capacity (lbs.):
400
Drilling capacity mild steel (in.):
2
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: J-2360
Stock Number: 354051
Motor: 4 HP, 230/460V, 3 Ph, Prewired 230V
Number of Spindle speeds: 9
Range of Spindle Speeds (RPM): 55, 98, 156, 198, 346, 456,
576, 822, 1338
Spindle Taper: MT-4
Quill Diameter (in.): 3.465
Max Distance Spindle to Table ( in.): 30-1/2
T-Slots Number and Size (in.): 3 x 5/8
Work Table Weight Capacity (lbs.): 400
Base Dimensions (LxWxH/ in.): 108 x 30 x 53
Drilling Capacity Cast Iron (in.): 2-5/32
Drilling Capacity Mild Steel (in.): 2
Tapping Capacity Cast Iron (in.): 2
Tapping Capacity Mild Steel (in.): 1-3/4
Quill Travel (in.): 10
Quill Travel w/ Powerfeed engaged (in.): 10
Quill Down feed Rates (IPR): .003, .006, .010, .014
Distance Base to Spindle (in.): 50
Table Size (in.): 22 x 19
Distance Column to Spindle (in.): 15
Spindle Distance to Base (in.): 50
Swing (in.): 15
Max Distance - Spindle to Table (in): 30-1/2
Quill Feed: 4
Spindle Travel (in.): 10
Auto: .003, .006, .010, .014
Number of Powerfeeds: 4
Base Slots Number & Size (in.): 5/8
Table Dimensions: 22 X 19
Spindle Distance to Table (max./in.): 30-1/2
Spindle Distance to Table (min./in.): 2-3/4
Height: 53 inch
Width: 30 inch
Length: 108 inch
Net Weight: 2405 pound
FEATURES:
* Direct drive round column drill press with mechanical
clutch
* Two speed forward and reverse switch
* Mechanical powerfeed clutch engagement
* Heavy duty quill and spindle
* Tempered, ground spindle with internal taper mounted in
precision bearings for maximum accuracy, minimizing
deflection
* Speed and feed selectors are located on one side of the
drill head for convenience and ease of operation
* Oversized base is precision ground with T-slots for
added versatility and stability
* Spindle gear box is equipped with steel hardened,
ground, shafts and gears
* Spindle gear box is internally lubricated in a
continuous oil bath for long term smooth operation.
* Tilting table, 45 left and right
* Powerfeed can be disengaged manually
STANDARD EQUIPMENT:
* Automatic tool ejector
* Manual quill lock
* Coolant system
* Low voltage at switch
2-YEAR FACTORY WARRANTY INCLUDED!!
