Top Seller

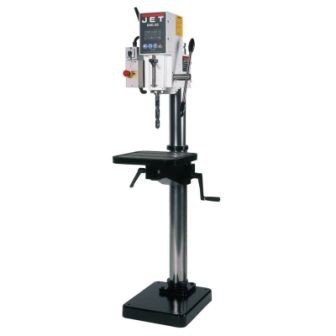

J-A3008-4 26" JET/ARBOGA GEAREDHEAD DRILL,
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
J-A3008-4
Capacity:
3/4

Specifications

Condition:
new
Stock number:
7956
Motor:
1-1/2 - 2HP, 440/460V, 3Ph
Width:
22 inch
Height:
34 inch
Length:
69 inch
Net weight:
565 pound
Quill feed:
Manual
Stock number:
354035
Spindle taper:
MT-3
Table dimensions:
15-3/4 x 19-3/4
Table size (in.):
15-3/4 x 19-3/4
Overall dimensions:
28 x 24 x 72
Quill travel (in.):
6
Table travel (in.):
30
Quill diameter (in.):
2-7/16
Spindle travel (in.):
6
Column diameter (in.):
4-1/2
Number of spindle speeds:
8
Base dimensions (lxwxh/ in.):
28 x 24
Range of spindle speeds (rpm):
90, 190, 320, 530, 640
T-slots number and size (in.):
2 x 9/16
Base slots number & size (in.):
2 x 9/16
Spindle distance to base (in.):
45-5/8
Drills to center of circle (in):
26
Vertical movement of drill head:
9
Tapping capacity cast iron (in.):
3/4
Vertical movement of table (in.):
30
Drilling capacity cast iron (in.):
1-3/8
Tapping capacity mild steel (in.):
5/8
Work table weight capacity (lbs.):
450
Drilling capacity mild steel (in.):
1-1/4
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: J-A3008-4
Stock Number: 354035
Motor: 1-1/2 - 2HP, 440/460V, 3Ph
Number of Spindle speeds: 8
Range of Spindle Speeds (RPM): 90, 190, 320, 530, 640,
1060, 1790, 3610
Spindle Taper: MT-3
Quill Diameter (in.): 2-7/16
Max Distance Spindle to Table ( in.): 35
T-Slots Number and Size (in.): 2 x 9/16
Work Table Weight Capacity (lbs.): 450
Column Diameter (in.): 4-1/2
Base Dimensions (LxWxH/ in.): 28 x 24
Drilling Capacity Cast Iron (in.): 1-3/8
Drilling Capacity Mild Steel (in.): 1-1/4
Tapping Capacity Cast Iron (in.): 3/4
Tapping Capacity Mild Steel (in.): 5/8
Quill Travel (in.): 6
Table Size (in.): 15-3/4 x 19-3/4
Drills to Center of Circle (in): 26
Spindle Distance to Base (in.): 45-5/8
Table Travel (in.): 30
Max Distance - Spindle to Table (in): 35
Quill Feed: Manual
Spindle Travel (in.): 6
Vertical Movement of Drill Head: 9
Vertical Movement of Table (in.): 30
Base Slots Number & Size (in.): 2 x 9/16
Table Dimensions: 15-3/4 x 19-3/4
Overall Dimensions: 28 x 24 x 72
Height: 34 inch
Width: 22 inch
Length: 69 inch
Net Weight: 565 pound
FEATURES:
* Helical gears for smooth, quiet operation
* Quick release drill ejector
* English/Metric depth gauge
* T-Slotted table and base with coolant trough
* Head and table rotate 360 degrees around column
* No-Volt release prevents spindle start when power
returns after shut down
* Steel column
* Extra long quill movement
* Adjustable taper bearings mounted in the end of the quill
* Fiber & steel gears which do not required oil bath and
allows for easy speed changes
* Drill head and table can be raised and lowered
2-YEAR FACTORY WARRANTY INCLUDED!!
