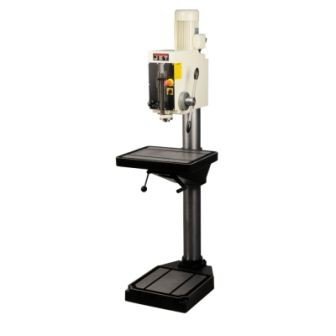

J-A4008M-PF2 26" JET/ARBOGA GEAREDHEAD DRILL,
Location:
McClellan Park, CA
Manufacturer:
JET Tools presses
Model:
J-A4008M-PF2
Capacity:
2" Cast Iron 1-7/8" Mild Steel

Specifications

Condition:
new
Stock number:
7952
Motor:
3HP, 220V, 3Ph
Width:
28 inch
Height:
81 inch
Length:
23 inch
Net weight:
700 pound
Quill feed:
Power feed
Swing (in.):
26
Stock number:
354040
Spindle taper:
MT-4
Table dimensions:
20 x 24
Table size (in.):
20 X 24
Overall dimensions:
23 x 28 x 81
Quill travel (in.):
8
Table travel (in.):
25
Number of powerfeeds:
4
Quill diameter (in.):
2-3/4
Spindle travel (in.):
8
T-slot centers (in.):
8-1/4
Base work table (in.):
13 x 16-1/8
Column diameter (in.):
5-1/2
Drilling capacity (in.):
2" Cast Iron 1-7/8" Mild Steel
Number of spindle speeds:
8
Quill down feed rates (ipr):
004, .006, .009, .013
Base dimensions (lxwxh/ in.):
23 x 28
Range of spindle speeds (rpm):
105, 162, 240, 360, 528
T-slots number and size (in.):
2 x 5/8
Base slots number & size (in.):
2 x 5/8
Distance base to spindle (in.):
44
Spindle distance to base (in.):
44
Drills to center of circle (in):
26
Distance column to spindle (in.):
13
Tapping capacity cast iron (in.):
1-1/8
Vertical movement of table (in.):
25
Drilling capacity cast iron (in.):
2
Tapping capacity mild steel (in.):
1
Work table weight capacity (lbs.):
550
Drilling capacity mild steel (in.):
1-7/8
Subcategory:
Drills
Subcategory 2:
Drill presses

Description

Model: J-A4008M-PF2
Stock Number: 354040
Motor: 3HP, 220V, 3Ph
Number of Spindle speeds: 8
Range of Spindle Speeds (RPM): 105, 162, 240, 360, 528,
805, 1175, 1800
Spindle Taper: MT-4
Quill Diameter (in.): 2-3/4
Max Distance Spindle to Table ( in.): 33
T-Slots Number and Size (in.): 2 x 5/8
T-Slot Centers (in.): 8-1/4
Work Table Weight Capacity (lbs.): 550
Drilling Capacity (in.): 2" Cast Iron 1-7/8" Mild Steel
Column Diameter (in.): 5-1/2
Base Dimensions (LxWxH/ in.): 23 x 28
Drilling Capacity Cast Iron (in.): 2
Drilling Capacity Mild Steel (in.): 1-7/8
Tapping Capacity Cast Iron (in.): 1-1/8
Tapping Capacity Mild Steel (in.): 1
Quill Travel (in.): 8
Quill Travel w/ Powerfeed engaged (in.): 8
Quill Down feed Rates (IPR): .004, .006, .009, .013
Distance Base to Spindle (in.): 44
Table Size (in.): 20 X 24
Distance Column to Spindle (in.): 13
Drills to Center of Circle (in): 26
Spindle Distance to Base (in.): 44
Swing (in.): 26
Base Work Table (in.): 13 x 16-1/8
Table Travel (in.): 25
Max Distance - Spindle to Table (in): 32
Quill Feed: Power feed
Spindle Travel (in.): 8
Number of Powerfeeds: 4
Vertical Movement of Table (in.): 25
Base Slots Number & Size (in.): 2 x 5/8
Table Dimensions: 20 x 24
Spindle Distance to Table (max./in.): 33
Overall Dimensions: 23 x 28 x 81
Height: 81 inch
Width: 28 inch
Length: 23 inch
Net Weight: 700 pound
FEATURES:
* Helical gears for smooth quiet operation
* Quick release drill ejector
* English/Metric depth gauge
* Machined, T-Slotted base plate
* Head and table rotate 360 degrees around column
* No-volt release prevents spindle start when power
returns after shut down
* Fully enclosed spindle
* Large T-Slotted table
STANDARD EQUIPMENT:
* Fully enclosed spindle
* Large T-Slotted table
2-YEAR FACTORY WARRANTY INCLUDED!!
