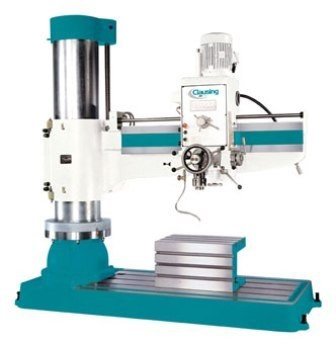

CLAUSING CL1600H 62"Arm x 17"Column,
Location:
McClellan Park, CA
Manufacturer:
Clausing
Model:
CL1600H
Weight:
6,614 lbs

Specifications

Condition:
new
Stock number:
8355
Width (k):
19.7"
Height (h):
15.7"
Height (q):
8.26"
Length (l):
27.6"
Net weight:
6,614 lbs
Maximum (a):
63"
Minimum (b):
15"
Minimum (d):
17.3"
Spindle taper:
5MT
Clamping motor:
1 Hp
Quill diameter:
3.94"
Spindle stroke:
14.6"
Boring in steel:
5"
Elevating motor:
2 Hp
Maximum (d + c):
62.2"
Number of feeds:
6
Shipping weight:
11,243 lbs
Tapping in steel:
1.97"
Drilling in steel:
2.6"
Coolant pump motor:
1/8 Hp
Floor area (r x s):
97.6" x 41.3"
Boring in cast iron:
7.28"
Spindle speeds (rpm):
40-1920
Tapping in cast iron:
2.36"
Drilling in cast iron:
2.75"
Column sleeve dia. (e):
17"
Max. machine height (f):
124.8"
Spindle head travel (c):
44.9"
Number of spindle speeds:
12
Arm vertical travel (a-b):
33.5"
Baseplate working surface:
70.9" x 40.4"
Base and column height (g):
107.7"
Arm rotation (right & left):
180 Degrees
Spindle drive motor (2-speed):
7.5 Hp
Spindle feed rate (in(mm)/rev):
0.003"(0.7mm)-0.038"(.96mm)
Shipping dimensions (l x w x h):
112.2" x 55.1" x 115.7"
Subcategory:
Drills
Subcategory 2:
Radial

Description

Model: CL1600H
Working Area:
Column Sleeve Dia. (E): 17"
Column Face to Spindle Center:
Maximum (D + C): 62.2"
Minimum (D): 17.3"
Spindle Head Travel (C): 44.9"
Base Surface to Spindle End:
Maximum (A): 63"
Minimum (B): 15"
Arm Vertical Travel (A-B): 33.5"
Arm Rotation (Right & Left): 180 Degrees
Baseplate Working Surface: 70.9" x 40.4"
Box Table Area:
Length (L): 27.6"
Width (K): 19.7"
Height (H): 15.7"
Base Dimensions:
Floor Area (R x S): 97.6" x 41.3"
Height (Q): 8.26"
Drill Head:
Spindle Taper: 5MT
Spindle Stroke: 14.6"
Quill Diameter: 3.94"
Number of Spindle Speeds: 12
Spindle Speeds (RPM): 40-1920
Number of Feeds: 6
Spindle Feed Rate (in(mm)/rev): 0.003"(0.7mm)-0.038"(.96mm)
Spindle Drive Motor (2-Speed): 7.5 Hp
Elevating Motor: 2 Hp
Clamping Motor: 1 Hp
Coolant Pump Motor: 1/8 Hp
Capacities:
Drilling in Steel: 2.6"
Drilling in Cast Iron: 2.75"
Tapping in Steel: 1.97"
Tapping in Cast Iron: 2.36"
Boring in Steel: 5"
Boring in Cast Iron: 7.28"
Dimensions/Weights:
Max. Machine Height (F): 124.8"
Base and Column Height (G): 107.7"
Shipping Dimensions (L x W x H): 112.2" x 55.1" x 115.7"
Net Weight: 6,614 lbs.
Shipping Weight: 11,243 lbs.
STANDARD FEATURES:
* Equipped with hydraulic separate clamping unit. Vertical
movement of arm is coordinated by an IC timer. With a single
touch on push button switch, you can have the arm unclamped
then move vertically, or stop then clamp automatically. Very
easy to operate, and tools will always stay at the same
point after tool shifting.
* Gears in gear box are cooled by oil cycled by an oil
pump to minimize gear wear.
* Friction type disc clutch absorbs impact force caused by
vertical movement of spindle, and protects all transmission
units inside gear box. With quick spindle return, the clutch
will help speed-up the tapping operation.
* Special automatic tool eject device is supplied to allow
you to change tools quickly. (No drifter is required)
Special arm elevating device is provided to prevent arm from
falling down abruptly after years of usage.
* Coolant system
* CSA Electrics Standard
* Tool kit and manuals
TWO (2)-YEAR LIMITED WARRANTY!!
