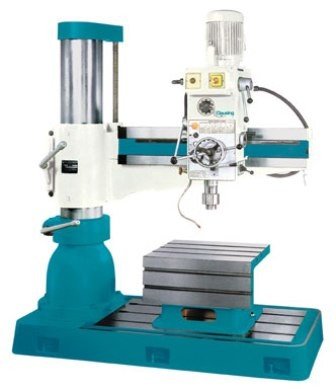

CLAUSING CL1230H 46.1"Arm x 11.81"Column,
Location:
McClellan Park, CA
Manufacturer:
Clausing
Model:
CL1230H
Weight:
4,630 lbs

Specifications

Condition:
new
Stock number:
8332
Width (k):
24.5"
Height (h):
16.3"
Height (q):
7.1"
Length (l):
25.0"
Net weight:
4,630 lbs
Maximum (a):
53.9"
Minimum (b):
19.3"
Minimum (d):
13.4"
Maximum (d+c):
46.1"
Spindle taper:
4MT
Clamping motor:
1 hp
Quill diameter:
3.15"
Spindle stroke:
9.84"
Boring in steel:
3.38"
Elevating motor:
1 hp
Number of feeds:
3
Shipping weight:
5,071 lbs
Tapping in steel:
1"
Drilling in steel:
1.65"
Coolant pump motor:
1/8 hp
Floor area (r x s):
67.9" x 28.1"
Boring in cast iron:
4.72"
Spindle speeds (rpm):
44-1500
Tapping in cast iron:
1.38"
Drilling in cast iron:
2.16"
Column sleeve dia. (e):
11.81"
Max. machine height (f):
109.5"
Spindle head travel (c):
35.0"
Number of spindle speeds:
2
Arm vertical travel (a-b):
24.8"
Baseplate working surface:
48" x 29.1"
Base and column height (g):
81.1"
Arm rotation (right & left):
180 Degrees
Spindle feed rate (in/rev.):
0.002", 0.0035", 0.006"
Spindle drive motor (2-speed):
3 hp
Shipping dimensions (l x w x h):
80.1" x 32.5" x 88.2"
Subcategory:
Drills
Subcategory 2:
Radial

Description

Model: CL1230H
Working Area:
Column Sleeve Dia. (E): 11.81"
Column Face to Spindle Center:
Maximum (D+C): 46.1"
Minimum (D): 13.4"
Spindle Head Travel (C): 35.0"
Base Surface to Spindle End:
Maximum (A): 53.9"
Minimum (B): 19.3"
Arm Vertical Travel (A-B): 24.8"
Arm Rotation (Right & Left): 180 Degrees
Baseplate Working Surface: 48" x 29.1"
Box Table Area:
Length (L): 25.0"
Width (K): 24.5"
Height (H): 16.3"
Base Dimensions:
Floor Area (R x S): 67.9" x 28.1"
Height (Q): 7.1"
Drill Head:
Spindle Taper: 4MT
Spindle Stroke: 9.84"
Quill Diameter: 3.15"
Number of Spindle Speeds: 2
Spindle Speeds (RPM): 44-1500
Number of Feeds: 3
Spindle Feed Rate (in/rev.): 0.002", 0.0035", 0.006"
Spindle Drive Motor (2-Speed): 3 hp
Elevating Motor: 1 hp
Clamping Motor: 1 hp
Coolant Pump Motor: 1/8 hp
Capacities:
Drilling in Steel: 1.65"
Drilling in Cast Iron: 2.16"
Tapping in Steel: 1"
Tapping in Cast Iron: 1.38"
Boring in Steel: 3.38"
Boring in Cast Iron: 4.72"
Dimensions/Weights:
Max. Machine Height (F): 109.5"
Base and Column Height (G): 81.1"
Shipping Dimensions (L x W x H): 80.1" x 32.5" x 88.2"
Net Weight: 4,630 lbs
Shipping Weight: 5,071 lbs
STANDARD FEATURES:
* High-quality cast-iron arm with heat-treated and ground
slides for smooth and accurate head positioning
* The bearing bracket for gear-box is fitted with standard
bearings to fit arm slide for smooth gear-box operation
* High speed gears are made of Nickel-Chrome Steel and are
heat-treated and ground for durability
* Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor
* Overload protection device
* The main spindle is balanced by an adjustable block
* Coolant system
* Low volt and overload protection
* Equipped withhydraulic clamping. With a push of a button
you can have arm unclamped then move vertically, or stop
then clamp automatically
* CSA Electrics Standard
* Tool kit and manuals
