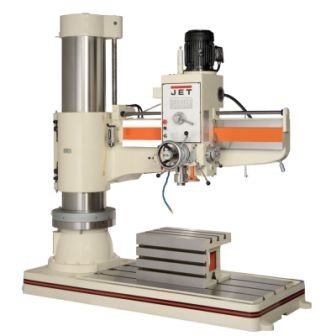

JET J-1600R 5' x 17",
Location:
McClellan Park, CA
Manufacturer:
JET Tools
Model:
J-1600R
Capacity:
5
Weight:
11000 pound

Specifications

Condition:
new
Stock number:
7942
Motor:
7-1/2 HP, 230/460V, 3 Ph, Prewired 230V See 320039
Width:
110 inch
Height:
115 inch
Length:
57 inch
Net weight:
11000 pound
Stock number:
320038
Spindle taper:
MT-5
Clamping motor:
1 HP
Elevating motor:
2 HP
Coolant pump motor:
1/8 HP
Overall dimensions:
116 x 55 x 112
Quill travel (in.):
14-9/16
Base dimensions (in.):
97-5/8 X 41-11/32 X 8-1/4
Column diameter (in.):
17
Table dimensions (in.):
27-7/8 X 19-5/8 X 15-3/4
Number of spindle speeds:
12 (40 - 1920)
Arm travel vertical (in.):
33-15/32
Boring capacity steel (in.):
5
Quill down feed rates (ipr):
6 (.003 - .038 IPR)
T-slots number and size (in.):
3 & 7/8
Boring capacity cast iron (in.):
7-3/8
Travel of head horizontal (in.):
49-5/8
Tapping capacity cast iron (in.):
2-3/8
Drilling capacity cast iron (in.):
2-5/16
Tapping capacity mild steel (in.):
2
Distance base to spindle (max/in.):
63
Distance base to spindle (min/in.):
15
Drilling capacity mild steel (in.):
2-1/2
Subcategory:
Drills
Subcategory 2:
Radial

Description

Model: J-1600R
Stock Number: 320038
Motor: 7-1/2 HP, 230/460V, 3 Ph, Prewired 230V See 320039
for 460V unit
Number of Spindle speeds: 12 (40 - 1920)
Spindle Taper: MT-5
Max Distance Spindle to Table ( in.): 47-3/8
T-Slots Number and Size (in.): 3 & 7/8
Column Diameter (in.): 17
Drilling Capacity Cast Iron (in.): 2-5/16
Drilling Capacity Mild Steel (in.): 2-1/2
Tapping Capacity Cast Iron (in.): 2-3/8
Tapping Capacity Mild Steel (in.): 2
Boring Capacity Steel (in.): 5
Boring Capacity Cast Iron (in.): 7-3/8
Distance Column to Spindle (max/in.): 62-1/4
Distance Column to Spindle (min/in.): 13-3/8
Travel of Head Horizontal (in.): 49-5/8
Distance Base to Spindle (max/in.): 63
Distance Base to Spindle (min/in.): 15
Arm Travel Vertical (in.): 33-15/32
Quill Travel (in.): 14-9/16
Quill Travel w/ Powerfeed engaged (in.): 13
Quill Down feed Rates (IPR): 6 (.003 - .038 IPR)
Elevating Motor: 2 HP
Base Dimensions (in.): 97-5/8 X 41-11/32 X 8-1/4
Coolant Pump Motor: 1/8 HP
Table Dimensions (in.): 27-7/8 X 19-5/8 X 15-3/4
Clamping Motor: 1 HP
Overall Dimensions: 116 x 55 x 112
Height: 115 inch
Width: 110 inch
Length: 57 inch
Net Weight: 11000 pound
FEATURES:
* The power train gears and spline shaft are made of the
finest quality, heat treated and ground nickel-chrome steel,
giving extra strength and smoothness to high torque loads
* The spindle is made of the finest case hardened steel
for extra strength and wear
* The spindle is supported by double row taper roller and
thrust ball bearings at the nose, with thrust and radial
axis bearings at the top
* The spindle is built to withstand exceptionally heavy
drilling and boring loads and to insure maximum accuracy
* Push button controls are all reduced to 110V
* Electrical circuits are located in the built-in control
box at the rear of the arm- this keeps the contols dust and
humidity free while making them easily accessible for
maintenance
* Entire frame is made of Meehanite and high tensile
strength cast iron to handle the heaviest of jobs
* Arm raising safety device prevents arm from dropping
* Counter balanced mechanism for spindle return
* 12 speeds/3 feed rates make exotic materials easier to
drill, bore and tap
* Centralized control center
* Automatic tool ejector
* Hydraulic head and column clamping
STANDARD EQUIPMENT:
* Built in work light
* Coolant pump
* Tool kit
* Box table
2-YEAR FACTORY WARRANTY INCLUDED!!
