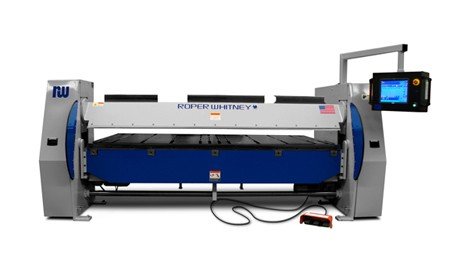

ROPER WHITNEY AB1014KT2 10X14 BOX&PAN
Location:
McClellan Park, CA
Manufacturer:
Whitney
Model:
AB1014KT2
Capacity:
14 Gauge (2.0mm) (Mild Steel)
Weight:
7930 lbs

Specifications

Condition:
new
Stock number:
286
As:
CUSTOMER NAME, PRODUCT, NAME, PART TYPE, ETC
Motors:
2 HP Clamping Beam
Capacity:
14 Gauge (2.0mm) (Mild Steel)
Electrical:
230 Volt / 3 Phase, 60 HZ
Opem height:
7.3" (185mm)
Construction:
Plate and weldment steel construction
System weight:
7930 lbs
Bending length:
122"
Working height:
35" (889mm)
Shipping weight:
8640 lbs
Backgauge travel:
61.00" (1550mm)
Service required:
20 AMP
Max. current draw:
7 AMPS
Overall dimensions:
152.7"L-R X 66.5"F-B
"vsd" bending system:
The variable speed drive
Bending beam adjustment:
2.0" (50mm)
Backgauge weight capacity:
700 lbs
Wire gauge for incoming power:
12 Gauge Required
Automatic dual clamping system:
No tool change is required
Now included - no extra charge:
VARIABLE SPEED DRIVE!
Subcategory:
Folding machines

Description

Model: AB1014KT2
Capacity: 14 Gauge (2.0mm) (Mild Steel)
Bending Length: 122"
Backgauge Weight Capacity: 700 lbs.
Backgauge Travel: 61.00" (1550mm)
Working Height: 35" (889mm)
Opem Height: 7.3" (185mm)
Bending Beam Adjustment: 2.0" (50mm)
Electrical: 230 Volt / 3 Phase, 60 HZ.
Max. Current Draw: 7 AMPS
Service Required: 20 AMP
Wire Gauge For Incoming Power: 12 Gauge Required.
Motors: 2 HP Clamping Beam
2 HP Bending Beam
Overall Dimensions: 152.7"L-R X 66.5"F-B
System Weight: 7930 lbs.
Shipping Weight: 8640 lbs.
(A Rotary R3 type phase converter is required when
connecting to single phase power )
STANDARD TOOLING INCLUDED:
(1) .787" X 122" Bending Bar
(1) .390" X 122" Bending Bar
(1) .250 X 122" Bending Bar
(1) 122" Lower Clamping Jaw
(1) 122" Upper Clamping Jaw (30-Degree)
(1) Set 10' Set of Box & Pan Fingers ranging from 1" to 24"
SYSTEM FEATURES:
* The unique kombi-beam is a fabricated structural prism on
which is mounted tooling to firmly clamp a broad range of
materials, close hems, and withstand the forces generated by
capacity forming operations. Machined into the kombi beam
180-degrees from each other are the attachment surfaces for
the straight and box&pan tooling. Tools are attached to the
kombi beam with standard socket-head cap screws. Grooves
are provided to secure tools even while the clamping bars
are loosened for adjustment.
* Rotation of the kombi-beam is powered by a brake motor
driving a sprocket and roller chain mechanism.
* Integrated sheet support and material positioning.
Workpieces are fully supported by the table beneath the
clamping jaw, and automatically positioned to an accuracy of
+/- .004" by the computer controlled automatic gauge.
* Automatic dual clamping system: No tool change is required
to create open, close or tear-drop hems. Open height can be
programmed for ease of part handling.
* CONSTRUCTION: Plate and weldment steel construction,
delivering superior performance and features in a simplified
rigid design. End housing are a plate-type construction
bringing frive components close together for improved
stiffness and performance. Actuating mechanisms are secured
in rigid mounts at the outside of the housings, allowing
easy maintenance.
COMPUTER SPECIFICATIONS:
* 15" high resolution anti-glare flat-panel touch screen!
* Intel pentium IV 2.0 GHZ processor or greater
* 256 MB of Ram memory
* 8 MB of video Ram
* 3.5 Floppy drive
* 40 GB Hard drive
* 1 GB Flash drive
* 44X CD-ROM
* RS232 serial port
* USB 1.1 ports
* Ethernet ready
* Sealed oil-tight enclosure
* Integrated industrial computer with internal air cooling
* Windows XP Pro operating system
* **** Capable of storing over one-million part programs
* Stored profiles can be changed into other types of shapes
on demand
* Programs can be stored in any number of directoreis such
as: CUSTOMER NAME, PRODUCT, NAME, PART TYPE, ETC...
PROGRAMMING FEATURES:
* The Titan system provides greater flexibility to the
operator with few keystrokes.
* Creation of part program
