Top Seller

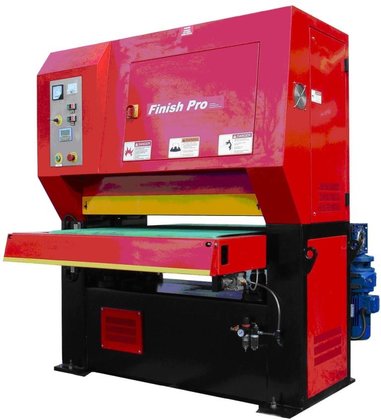

FINISH PRO FP-4075 40", Dry
Location:
McClellan Park, CA
Manufacturer:
FINISH PRO
Model:
FP-4075
Weight:
4,650 LBS

Specifications

Condition:
new
Stock number:
7129
Caution:
If fire hazardous materials, such as aluminum
Optional:
WET DUST COLLECTORS use a water filled tank
Main motor:
15 HP, 230V / 460V, 3-Ph
Conveyor motor:
1.5 HP, 230V / 460V,3-Ph
Max. part width:
40"
Passline height:
31" - 37"
Abrasive belt size:
40" x 75"
Net weight, approx:
4,650 LBS
Contact roller size:
8" Dia
Table lifting motor:
1 HP, 230V / 460V, 3-Ph
Conveyor drive speeds:
8-40 FPM
Infeed conveyor length:
20"
Compressed air required:
2 CFM @ 90 PSI
Dust collector capacity:
2,800 CFM
Max. thickness capacity:
6-1/8"
Machine dimensions, lxwxh:
76" x 88" x 81"
Subcategory:
Belt
Subcategory 2:
Grinders

Description

Model: FP-4075
Max. Part Width: 40"
Abrasive Belt Size: 40" x 75"
Contact Roller Size: 8" Dia.
Passline Height: 31" - 37"
Max. Thickness Capacity: 6-1/8"
Conveyor Drive Speeds: 8-40 FPM
Infeed Conveyor Length: 20"
Dust Collector Capacity: 2,800 CFM
Main Motor: 15 HP, 230V / 460V, 3-Ph
Conveyor Motor: 1.5 HP, 230V / 460V,3-Ph
Table Lifting Motor: 1 HP, 230V / 460V, 3-Ph
Net Weight, approx.: 4,650 LBS
Machine Dimensions, LxWxH: 76" x 88" x 81"
FEATURES:
* Abrasive belt size: 40" x 75"
* 8" diameter heavy duty drum for perfect graining
* 6-1/8" wide opening for max. workpiece thickness 6"
* Motorized Table Lift with LED display
* Variable Speed Conveyor
* Conveyor Forward & Reverse
* Belt Safety Overtravel Switches
* Electronic Eye Belt Tracking. Belt tracking adjusting
lever (Belt Trimmer) to re-adjust the tracking system when
running extremely out of parallel belts -4-Jackscrew Table
Support
* Double Infeed & Outfeed Pinch Rolls with protective guards
* Conveyor Belt Tracking System
* Safety System with Disc Brake. Air operated disc brakes to
stop sanding head in
* 3-5 seconds in the even of loss of air pressure or
activation of any emergency stop device
* Table Height Digital Readout
* Load Meter indicates percentage of full motor loads
* Belt changedoor electrically interlockd for safety purpose
* Air tensioning of belt for accurate tensioning &
compensation of belt stretch
* Quick release sanding head support for fast belt change
* Dust collection hood with 6" outlet is located adjacent to
abrasive head in sanding area
* Emergency stops from almost any point
* Noise level bellows 82 dba
* Operation manual, control tags, danger signs, and warning
labels in English on machine
* 208/230V, 3-Phase ( 440/460V is available )
* One year Industrial Warranty for parts
NOTE:
Prices are for 208-230 VOLTS
Total amps 60 @ 230/3/60
COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum,
titanium, magnesium, etc., are to be processed, a dust
collection system that conforms to National Fire Protection
Association (NFPA) should be used.
OPTIONAL: WET DUST COLLECTORS use a water filled tank
through which all grinding dust is pulled by a motor driven
impeller fan. Particles sink to the base of the tank where
they can easily be removed by raking into a provided
container. Normal tap water is used, there are not filter
bags to be changed. Water level is automatically
controlled when unit is connected to a water supply. All
units are equipped with explosion relief door and sound
silencer.
OPTIONAL ACCESSORIES
Model WDC-FP52 Wet Dust Collector # WDC-FP40 $7800.00
Heavy Duty Ducting Package # HDDP-4075.....$975.00
Service Engineer for Start-Up and On-site Training $POR Plus
travel expenses
