Top Seller

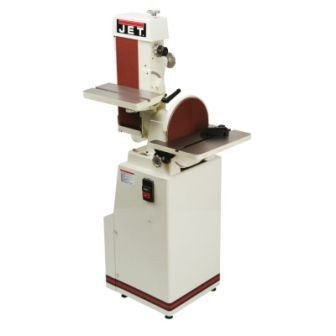

JET J-4202A 6" X 48"
Location:
McClellan Park, CA
Model:
J-4202A
Weight:
250

Specifications

Condition:
new
Stock number:
8044
Motor (hp):
1-1/2 HP, 230V, 3 Ph
Motor phase:
3 Ph
Stock number:
414553
Style (type):
Belt & Disc
Weight (lbs.):
250
Disc speed (rpm):
1,960
Belt speed (sfpm):
2,850
Table slots (in.):
3/8 & 3/4
Motor voltage (v.):
230
Disc diameter (in.):
12
Belt table size (in.):
7-3/8 x 14-3/4
Belt table tilt (deg.):
45 Out, 20 In
Disc table tilt (deg.):
45 Out, 20 In
Belt size (w x l) (in.):
6 x 48
Disc table size (l x w) (in.):
12 x 16-3/8
Subcategory:
Grinders

Description

Model: J-4202A
Stock Number: 414553
Style (Type): Belt & Disc
Disc Diameter (in.): 12
Disc Speed (RPM): 1,960
Belt Size (W x L) (in.): 6 x 48
Belt Speed (SFPM): 2,850
Disc Table Size (L x W) (in.): 12 x 16-3/8
Disc Table Tilt (Deg.): 45 Out, 20 In
Table Slots (in.): 3/8 & 3/4
Belt Table Tilt (Deg.): 45 Out, 20 In
Belt Table Size (in.): 7-3/8 x 14-3/4
Motor (HP): 1-1/2 HP, 230V, 3 Ph
Motor Voltage (V.): 230
Motor Phase: 3 Ph
Overall Dimensions (L x W x H) (in.): 26 x 19 x 58
Weight (lbs.): 250
High-speed precision and amazing versatility. This rugged
piece of equipment has a belt that operates at any angle,
and conforms to curves, angles or circular finishing and
grinding operations. Machinists who take great pride in
their work prefer the JET Industrial Combination Belt & Disc
Finishing Machine
FEATURES:
* Belt operates at any angle
* Powered by a heavy duty 1-1/2 HP TEFC motor
* Contour finishing, mitering, flat finishing, beveling
and precision finishing
* Plain and compound miters are easily obtained by using
the standard die cast aluminum miter gauge
* Fully machined balanced disc runs vibration free
* Adjustable heavy duty cast iron removable platen
* Removable upper guard for contour finishing
* Variable position locks, belt heads adjust vertically,
horizontally and in between
* Large cast iron slotted table
* Adjustable dust deflector and dust chute
* Completely enclosed drums and a guarded sanding belt
* Heavy duty one piece steel stand
* 60 grit belt and disc standard on machine
2-YEAR FACTORY WARRANTY INCLUDED!!
