Top Seller

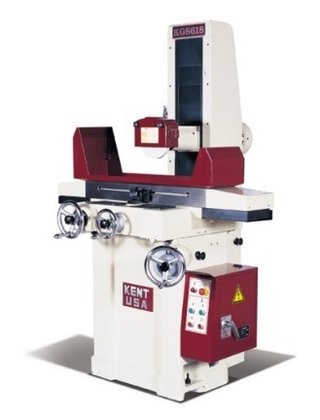

KENT KGS-618 6" x 18",
Location:
McClellan Park, CA
Model:
KGS-618
Weight:
2600 lbs

Specifications

Condition:
new
Stock number:
1951
Spindle motor:
2 HP, 3470 RPM, 60 HZ
Approx. weight:
2600 lbs
Grinding wheel:
8" X 1" X 1-1/4"
Working capacity:
6" X 18"
Max. table travel:
19.5"
Max. saddle travel:
6.75"
Downfeed dial graduation:
0.0002"
Downfeed dial revolution:
0.050"
T-slot (number and size):
1 X 9/16"
Crossfeed dial graduation:
0.0005"
Crossfeed dial revolution:
0.100"
Spindle center to table top:
21"
Rustlick coolant (1 gal, mixes 1:
30)
Subcategory:
Grinders
Subcategory 2:
Surface grinders

Description

Model: KGS-618
Working Capacity: 6" X 18"
Max. Table Travel: 19.5"
Max. Saddle Travel: 6.75"
Spindle Center to Table Top: 21"
T-Slot (Number and Size): 1 X 9/16"
Spindle Motor: 2 HP, 3470 RPM, 60 HZ
Grinding Wheel: 8" X 1" X 1-1/4"
Downfeed Dial Graduation: 0.0002"
Downfeed Dial Revolution: 0.050"
Crossfeed Dial Graduation: 0.0005"
Crossfeed Dial Revolution: 0.100"
Approx. Weight: 2600 lbs.
FEATURES:
* Roller ball on linear table ways for easy and smooth
longitudinal movements
* Ultra-high super rigid H-frame column with 21" spindle
center to table for more clearance under the wheel than any
other machine in its class
* Flange-mount 3.35" diameter spindle cartridge design
provides unmatched heavy grinding with superior side-
grinding rigidity
* Large metal hand wheels on all axis for long lasting
dependability and easy operation
* Over 2400 pound net weight, almost twice as massive as our
competition
* Centralized one-shot lubrication system provides
lubrication to all points
* Safety 24V control circuit power
STANDARD ACCESSORIES:
* Grinding Wheel
* Wheel Flange
* Balancing Base
* Balancing Arbor
* Diamond Table Dresser
* Work Light
* Leveling Bolts and Pads
* Toolbox and Standard Tools
OPTIONAL ACCESSORIES:
Acurite Digital Readout
Kanetsu 6x18 find pole electric chuck & control
Walker 6x18 Ceramax permanent chuck
Walker 6x18 find pole electric chuck & control
Dust-suction coolant system
Overhead parallel dresser
Extra wheel flange
Rustlick coolant (1 gal, mixes 1:30)
