Top Seller

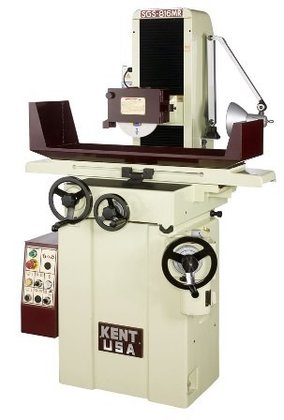

KENT SGS-816MR 8" x 16",
Location:
McClellan Park, CA
Model:
SGS-816MR
Weight:
1540 lbs

Specifications

Condition:
new
Stock number:
3789
T-slot:
1 x 9/16"
Net weight:
1540 lbs
Gross weight:
1860 lbs
Table travel:
17"
Saddle travel:
8.25"
Spindle motor:
2 HP
Spindle speed:
3450 RPM
Grinding wheel:
8"x1/2"x1-1/4"
Spindle to table:
18"
Working capacity:
8"x16"
Vertical graduation:
0.00025"/0.00005"
Vertical revolution:
0.050"
Rustlick coolant (1 gal, mixes 1:
30)
Subcategory:
Grinders
Subcategory 2:
Surface grinders

Description

Model: SGS-816MR
Table travel: 17"
Grinding wheel: 8"x1/2"x1-1/4"
Saddle travel: 8.25"
Vertical graduation: 0.00025"/0.00005"
Working capacity: 8"x16"
Vertical revolution: 0.050"
Spindle to table: 18"
T-slot: 1 x 9/16"
Spindle motor: 2 HP
Spindle speed: 3450 RPM
Net weight: 1540 lbs
Gross weight: 1860 lbs
FEATURES:
* 8"x16" working capacity
* Micro-downfeed dial graduated in 0.00005" and a rapid
elevation motor for quick and eazy Z-axis positioning and
control
* Roller ball on linear table ways for easy and smooth
longitudinal movements
* High column, 18" spindle center to table for extra
clearance under the wheel
* 8" cross traverse for extra width and capacity, perfect
for the mold shops
* Centralized one-shot lubrication system provides
lubrication to all points
* Safety 24V control circuit power
STANDARD ACCESSORIES:
Grinding wheel, Wheel flange, Wheel balancing base, Wheel
balancing arbor, Diamond table dresser base and tip,
Leveling bolts and pads, Work light, Toolbox with tools.
OPTIONS/ACCESSORIES:
Acu-Rite 200S DRO (2-axis, 10"x18", 0.0001" res)............
DRO installation charge.....................................
Walker 8x15 LBP electric chuck w/ Smart-1B control..........
Walker 8x15 Ceramax permanent chuck.........................
Kanetsu 8x16 fine pole electric chuck & control.............
Kanetsu 8x16 permanent chuck................................
Dust-suction coolant system.................................
Flood coolant system........................................
Overhead parallel dresser...................................
Extra wheel flange..........................................
Rustlick coolant (1 gal, mixes 1:30)........................
