Top Seller

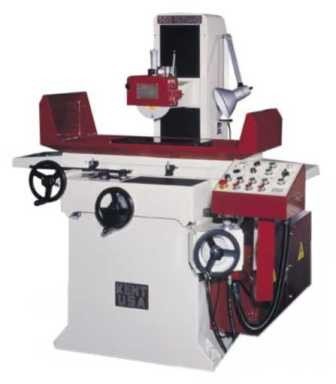

KENT SGS-1020AHD 10" x 20",
Location:
McClellan Park, CA
Weight:
3100 lbs

Specifications

Condition:
new
Stock number:
1425
T-slot:
1 X 9/16"
Table travel:
20.5"
Saddle travel:
10.5"
Spindle motor:
2 HP
Spindle speed:
3580 RPM
Grinding wheel:
8" X 1/2" X 1-1/4"
Working capacity:
10" X 20"
Extra wheel flange:
$75.00
Vertical graduation:
0.0005"
Vertical revolution:
0.100"
Machine weight, approx:
3100 lbs
Auto downfeed increment:
0.0001" 10 Steps
Dro installation charge:
$350.00
Spindle center to table:
19"
Walker 8x18 ceramax permanent chuck:
$2,500.00
Subcategory:
Grinders
Subcategory 2:
Surface grinders

Description

Model: SGS-1020AHD
Table Travel: 20.5"
Saddle Travel: 10.5"
Working Capacity: 10" X 20"
T-Slot: 1 X 9/16"
Spindle Motor: 2 HP
Spindle Speed: 3580 RPM
Grinding Wheel: 8" X 1/2" X 1-1/4"
Vertical Graduation: 0.0005"
Vertical Revolution: 0.100"
Auto Downfeed Increment: 0.0001" 10 Steps
Spindle Center to Table: 19"
Machine Weight, Approx: 3100 lbs.
FEATURES:
* 10"x20" working capacity
* 3-axis automatic movement with incremental downfeed and
electronic auto-crossfeed precision hand scrapped turcite
table and saddle ways for smooth and long lasting
performance.
* Highcolumn design w/19" spindle center to table for extra
clearance under the wheel
* Rapid elevation motor for quick and easy positioning of
grinding head/wheel
* Centralized automatic oneshot lube system provides
lubrication to all points
* Safety 24V control circuit power
PRICE INCLUDES:
8" x 20" permanent magnetic chuck, Dust-suction coolant
system, and Overhead parallel dresser
AND STANDARD ACCESSORIES:
Grinding wheel, Wheel flange, Wheel balancing base, Wheel
balancing arbor, Diamond table dresser base and tip,
Leveling bolts and pads, Work light, Toolbox with tools.
OPTIONS AND ACCESSORIES:
Acu-Rite 200S DRO (2-axis, 10"x18", 0.0001" res): $2,200.00
DRO installation charge: $350.00
Walker 8x18 LBP electric chuck w/ Smart-1B control:
$2,815.00
Walker 8x18 Ceramax permanent chuck: $2,500.00
Kanetsu 8x18 fine pole electric chuck & control: $2,350.00
Paper filter & magnetic separator coolant system: $2,350.00
Extra wheel flange: $75.00
Rustlick coolant (1 gal, mixes 1:30): $50.00
