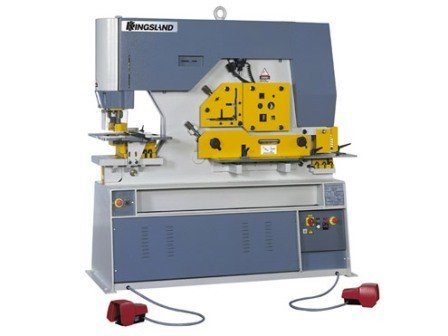

KINGSLAND 80-TON MULTI-SERIES STEELWORKER in
Location:
McClellan Park, CA
Manufacturer:
KINGSLAND
Model:
80-TON MULTI-SERIES STEELWORKER
Capacity:
80 Tons
Weight:
4,245 lbs

Specifications

Condition:
new
Stock number:
2100
Motor:
10 HP
Width:
1 1/2"
Flat bar:
12" x 3/4" or 18" x 5/8"
Net weight:
4,245 lbs
Angle flange:
4" x 3/8"
Blade length:
18 1/2"
Flange punch:
12"
Throat depth:
12"
At 45 degrees:
2 3/4" x 3/8"
At 90 degrees:
6" x 1/2"
Rated capacity:
80 Tons
Tee (optional):
3 1/2" x 1/2"
Throat depth 2:
5"
Working height:
42 5/16"
Maximum bar size:
10" x 5/8" or 24" x 1/4"
Maximum capacity:
1 1/8" x 3/4"
Maximum diameter:
3 1/4"
Working height 2:
35"
Working height 3:
45 1/2"
Maximum hole size:
6 3/8"
Machine dimensions:
28"w x 69"L x 72"H
Material thickness:
1/2"
Maximum capacity 2:
1 1/2" x 5/16"
Maximum capacity 3:
10sq x 1/4"
Diameter x thickness:
2 1/4" x 3/8"
Maximum stroke length:
2 1/8"
Channel/beam (optional):
5 3/16" x 2 1/2"
Speed - 5/8 inch travel:
50 (25 cpm)
Round-square bar (standard):
1 3/4"
Angle flange miter - at 45 degrees:
4" x 5/8"
Subcategory:
Ironworkers

Description

Model: MULTI 80
CAPACITIES WITH STANDARD EQUIPMENT:
PUNCHING:
Rated Capacity: 80 Tons
Maximum Capacity: 1 1/8" x 3/4"
Diameter x Thickness: 2 1/4" x 3/8"
Maximum Hole Size: 6 3/8"
Maximum Stroke length: 2 1/8"
Speed - 5/8 inch Travel: 50 (25 cpm)
Throat depth: 12"
Working Height: 42 5/16"
Flange Punch: 12"
SHEARING:
Flat bar: 12" x 3/4" or 18" x 5/8"
Angle Flange Miter - At 45 degrees: 4" x 5/8"
Blade Length: 18 1/2"
Working Height: 35"
SECTION CUTTING:
Round-Square Bar (Standard): 1 3/4"
Channel/Beam (Optional): 5 3/16" x 2 1/2"
Tee (Optional): 3 1/2" x 1/2"
ANGLE CUTTING:
At 90 degrees: 6" x 1/2"
At 45 degrees: 2 3/4" x 3/8"
Working Height: 45 1/2"
NOTCHING:
Material Thickness: 1/2"
Width: 1 1/2"
Depth: Vee(Optional)-Rectangular(Standard): 2 3/8"-3 1/2"
Angle Flange: 4" x 3/8"
Working Height: 35"
GENERAL:
Motor: 10 HP
Net Weight: 4,245 lbs
Machine Dimensions: 28"w x 69"L x 72"H
CAPACITIES WITH ADDITIONAL TOOLING:
BENDING:
Maximum Bar Size: 10" x 5/8" or 24" x 1/4"
PUNCHING NOTCH STATION:
Maximum Capacity: 1 1/2" x 5/16"
Throat Depth: 5"
CORNER NOTCH:
Maximum Capacity: 10sq x 1/4"
TUBE NOTCH:
Maximum Diameter: 3 1/4"
FOR OPTIONAL "PRODUCTION PACK" ADD $1,100.00
Our " Production Pack" is equipped with the following:
* Movable Work Lamp- 12 V Halogen on Magnetic Base
* Shear End 39" Electrical Touch & Cut Ruled Length Stop
* Embedded scales at the Notch station for easy positioning
* Fine adjustment to the punch stroke
The Kingsland Multi Hydraulic Ironworker is a highly
versatile piece of equipment that will give your shop a
competitive edge over your competition. Manufactured on
state of the art production lines with top quality
components, the Multi Ironworker combines quality with
affordability. Please make special note of the high level of
standard equipment that is essential to productive use - and
included within the quoted price - but incurs extra costs
from our competitors. There are several standards features
that contribute to its versatility which will provide your
company with safe, accurate and dependable use.
The Multi is a SAFE machine which comes complete with Work
Station guards, low voltage electric, overload protection to
both hydraulic and electrical circuits. All Kingsland Multi
machines are built to conform to ANSI B11.5 "American
National Standard for machine tools - iron workers - safety
requirements for construction, care, and use". However, due
to the multi-purpose use of some of the equipment, the
purchaser shall be responsible for the proper installation
and continued use of point of operation guards or awareness
barriers to assure complete operator safety.
You will find the Multi to be a VERSATILE machine. The FIVE
Work Stations give the operator the opportunity to perform
four different functions without changes to tooling set-ups.
Most of the work stations have multiple options, with extra
equipment, which would allow the demanding job shop or steel
service center the capability to cut, bend, or punch a wide
variety
