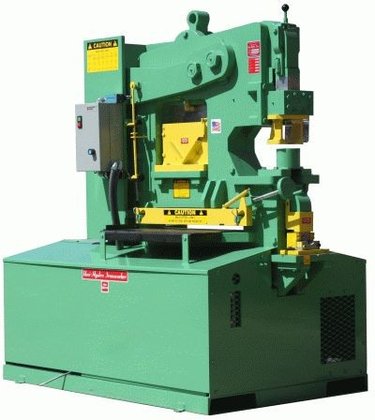

UNI-HYDRO 105-TON IRONWORKER in McClellan
Location:
McClellan Park, CA
Manufacturer:
UNI-HYDRO
Model:
105-TON IRONWORKER
Weight:
4640

Specifications

Condition:
new
Stock number:
7787
Brake:
6, 9, 18, 24"
Punch:
1-5/16" in 1"
Throat:
12"
Brake 2:
6, 9 or 14"
Punch 2:
1-3/4" in 3/4"
Tonnage:
105
Motor hp:
7.5 HP, 1 or 3 ph
Bar shear:
1/4x24", 1/2x20"
Choice of:
Notcher in 4th Station, Pipe, Square
Bar shear 2:
3/4x12", 1x8"
Net weight (lbs):
4640
Angle shear 45 deg:
Sever, 4x4x1/2"
Angle shear 90 deg:
Slug, 6x6x1/2"
Subcategory:
Ironworkers

Description

Model: PRO 105
Tonnage: 105
Angle shear 90 deg: Slug, 6x6x1/2"
Angle shear 45 deg: Sever, 4x4x1/2"
Bar shear: 1/4x24", 1/2x20"
Bar shear: 3/4x12", 1x8"
Punch: 1-5/16" in 1"
Punch: 1-3/4" in 3/4"
Throat: 12"
Motor HP: 7.5 HP, 1 or 3 ph
Net weight (lbs): 4640
FEATURES:
* The PRO SERIES of Uni-Hydro Inc. are machines designed
with the following included:
* Flat bar shear
* Power cavity for switching different stuctural shears
* Punching station
* And a notching station
So you can move a pipe notcher from the notching station
to the punch station OR move it from the punch station to
the power cavity, or load all 3 stations with different
sized pipe notchers
* Open throat punch has 105-ton capacity
* 24" bar shear with 4-sided blades
* Bar shear holddown can be fixed or adjustable
* Magnetic starter for safety and reliability
* Variable Stroke Control
* Built for forklift handling
* Full up and down stroke control
* 4th station allow notching without retooling
* Notcher of choice comes standard with machine
* Strokes per Minute - 50 (light material), 7 (at max.
cap.)
* Hydraulics - 3000 psi
* Oil Capacity - 28 gallons
* Approx. dimensions - 41W x 62L x 70"H
STANDARD ACCESSORIES:
* 12" Throat depth
* Open throat punch
* Manual punch aligner
* 4-Way 24" low rake bar shear blades
* Magnetic starter for safety and reliability
* Choice of: Notcher in 4th Station, Pipe, Square,
or V Coper Notcher
OPTIONAL TOOLING AVAILABLE ....
PUNCH STATION:
Square Notcher
Coper Notcher
Pipe Notcher
Brake: 6, 9, 18, 24"
POWER CAVITY:
Square Notcher
Coper Notcher
Channel Shear
Angle Shear
Z & T Shear
Rod Shear
Brake: 6, 9 or 14"
4TH STATION:
Square Notcher
Coper Notcher
Pipe Notcher
MADE IN THE USA!
