Top Seller
EDWARDS ELITE 110 110-TON IRONWORKER,
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
ELITE 110
Capacity:
1-3/8" Dia. in 1" A36
Weight:
5380 lb

Specifications

Condition:
new
Stock number:
8159
Depth:
42-3/8"
Width:
57-1/4"
Height:
66-1/16"
Rating:
110 Tons
Stroke:
1-13/16"
Cylinder:
3-1/2" Ram
Reservoir:
17 Gallons
Max. round:
1-1/4"
Max. square:
1-1/4"
Open height:
8-5/8"
Shut height:
6-13/16"
Work height:
41"
Throat depth:
11-3/4"
Max. capacity:
1-3/8" Dia. in 1" A36
Work height 2:
41-1/2"
Work height 3:
50-7/8"
Work height 4:
44-3/16"
Work height 5:
39-3/16"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Throat depth 2:
15-1/2"
Valve pressure:
3000 PSI
Max. capacity 2:
6" x 6" x 1/2"
Max. capacity 3:
2-1/2" x 6" x 1/2"
Shipping weight:
5380 lb
Subcategory:
Ironworkers

Description

Model: ELITE 110
PUNCH
Rating: 110 Tons
Max. Capacity: 1-3/8" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke: 1-13/16"
Throat Depth: 11-3/4"
Open Height: 8-5/8"
Shut Height: 6-13/16"
Work Height: 41"
FLAT BAR SHEAR
Max. Capacity:
3/4" x 14"
1" x 12"
Max. Round: 1-1/4"
Max. Square: 1-1/4"
Work Height: 41-1/2"
ANGLE SHEAR
Max. Capacity: 6" x 6" x 1/2"
Work Height: 50-7/8"
OPTIONAL COPER NOTCHER
Max. Capacity: 2-1/2" x 6" x 1/2"
Work Height: 44-3/16"
OPEN STATION
Throat Depth: 15-1/2"
Open Height: 8-5/8"
Shut Height: 6-13/16"
Stroke: 1-13/16"
Work Height: 39-3/16"
GENERAL SPECIFICATIONS
Standard Motor:
7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors:
7.5 HP 3~ 460 V
1765 RPM 11 A
7.5 HP 3~ 575 V
1770 RPM 8 A
7.5 HP 1~ 208 V or 230 V
1765 RPM 36 A
Hydraulic Pump: 10-1/2 GPM - 2 Stage
Valve Pressure: 3000 PSI
Reservoir: 17 Gallons
Cylinder: 3-1/2" Ram
DIMENSIONS
Height: 66-1/16"
Width: 57-1/4"
Depth: 42-3/8"
Shipping Weight: 5380 lb
The Superior 4 Station Ironworker
* Universal Open Tooling Station
* ANSI B11.5-1988R(02) Compliant
* ETL/UL Approved Controls
* ELITE Integrated Features:
Hydraulic Hold-Down
E-Stop / Lockout-Tagout
Electric Stroke Control
Hydraulic Accessory Pack
Central Lubrication System
Swing-Away Stripper Assembly
Roller Encoder Measuring System
Quick Change Punch Assembly
Premium Gauging Tables
LED Lighting
The Edwards ELITE 110 Ironworker sets the standard of design
excellence and superior performance with integrated value-
added features in this robust new series of Ironworkers.
Standard features of the ELITE 110 include a Punch Assembly,
Flat Bar Shear, Angle Shear and a universal open tooling
station for optional Tooling Accessories. Integrated
hydraulic accessory ports enable your ELITE 110 to act as a
power source for our expanding line of innovative Hydraulic
Accessory Tools.

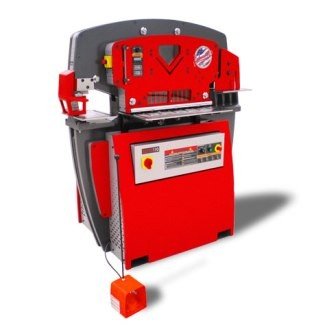

Shown with optional Coper Notcher tooling.
