EDWARDS JAWS-25TON 25-TON IRONWORKER, 1-PHSE
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
JAWS-25TON
Capacity:
1" Dia. in 5/16" A36
Weight:
1000 lb

Specifications

Condition:
new
Stock number:
338
Depth:
23"
Width:
29"
Height:
55"
Rating:
25 Tons
Stroke:
1"
Cylinder:
1-3/4" Ram
Reservoir:
3 Gallons
Open height:
7"
Shut height:
6"
Work height:
38-1/2"
Throat depth:
5-1/2"
Max. capacity:
1" Dia. in 5/16" A36
Open height 2:
8"
Shut height 2:
7"
Work height 2:
35-3/4"
Hydraulic pump:
11 GPM - 2 Stage
Throat depth 2:
5"
Valve pressure:
2750 PSI
Shipping weight:
1000 lb
Subcategory:
Ironworkers

Description

Model: 25-Ton Deluxe
PUNCH:
Rating: 25 Tons
Max. Capacity: 1" Dia. in 5/16" A36
(65,000 PSI Tensile)
Stroke: 1"
Throat Depth: 5-1/2"
Open Height: 7"
Shut Height: 6"
Work Height: 38-1/2"
OPEN STATION:
Stroke: 1"
Throat Depth: 5"
Open Height: 8"
Shut Height: 7"
Work Height: 35-3/4"
GENERAL SPECIFICATIONS:
Standard Motor:
1 HP 1~ 208 V or 230 V
1725 RPM 7 A
Optional Motors:
1 HP 1~ 120 V
1725 RPM 14 A
Hydraulic Pump: 11 GPM - 2 Stage
Valve Pressure: 2750 PSI
Reservoir: 3 Gallons
Cylinder: 1-3/4" Ram
DIMENSIONS:
Height: 55"
Width: 29"
Depth: 23"
Shipping Weight: 1000 lb
Ideal for the Hobbyist
* Two Available Workstations
* Punch Assembly with Pedestal Die Table
* Universal Open Tooling Station
* Specialized for Smaller Jobs
Compact footprint and affordability make the Edwards 25 Ton
JAWS Ironworker the perfect fit for garages or small fab
shops. Standard features include a Punch Assembly with
Pedestal Die Table and a universal open tooling station to
accept a variety of optional Tooling Accessories.

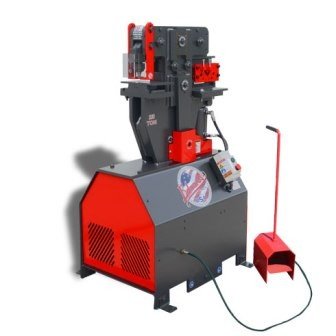

Add the versatile Multi-Shear (as shown) to handle a variety
of your fabrication tasks such as shearing flat bar, angle
and bar stock.
