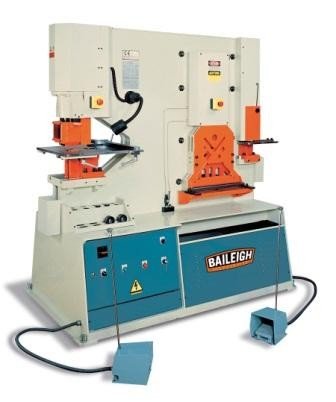

BAILEIGH SW-953 95-TON IRONWORKER, 3-PHASE,
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
SW-953
Capacity:
1.062" x .875"
Weight:
6,050 lbs

Specifications

Condition:
new
Stock number:
6633
Power:
220V / 3-phase
Blade length:
16.125"
Cycles / min:
38 @ 15 mm
Throat depth:
16"
Angle bending:
4" x .312"*
Pipe notching:
4.4"*
Punch capacity:
1.062" x .875"
Working height:
41.3"
Shipping weight:
6,050 lbs
Square bar shear:
1.75" x 1.75"
Angle flange trim:
4"
Flat bar shearing:
16" x .75"
Punching pressure:
95 Tons
Max. stroke length:
3.93"
Shipping dimensions:
70.6" x 40.1" x 73.4"
Angle shearing at 90:
5.125" x 5.125" x .5"
Diameter x thickness:
2" x .5"
Notching working height:
41.3"
Multi vee press brake l x t:
19.625" x .187"*
Rectangle notcher w x d x t:
2" x 3.5" x .5"
Vee notcher side x side x t:
4.1" x 4.1" x .5"*
Flat shearing working height:
28.5"
Single vee press brake l x t:
9.875" x .625"*
Angle shearing working height:
40.9"
Large v notcher side x side x t:
5.75" x 5.75" x .375"*
Subcategory:
Ironworkers

Description

Model: SW-953
Rectangle Notcher W x D x T: 2" x 3.5" x .5"
Single Vee Press Brake L x T: 9.875" x .625"*
Punch Capacity: 1.062" x .875"
Punching Pressure: 95 Tons
Pipe Notching: 4.4"*
Multi Vee Press Brake L x T: 19.625" x .187"*
Notching Working Height: 41.3"
Throat Depth: 16"
Vee Notcher Side x Side x T: 4.1" x 4.1" x .5"*
Working Height: 41.3"
Square Bar Shear: 1.75" x 1.75"
Angle Shearing Working Height: 40.9"
Angle Shearing at 90: 5.125" x 5.125" x .5"
Angle Bending: 4" x .312"*
Angle Flange Trim: 4"
Blade Length: 16.125"
Large V Notcher Side x Side x T: 5.75" x 5.75" x .375"*
Max. Stroke Length: 3.93"
Diameter x Thickness: 2" x .5"
Cycles / Min.: 38 @ 15 mm
Flat Bar Shearing: 16" x .75"
Flat Shearing Working Height: 28.5"
Power: 220V / 3-phase
Shipping Weight: 6,050 lbs.
Shipping Dimensions: 70.6" x 40.1" x 73.4"
DESCRIPTION:
An ironworker is a staple for any metal working shop, the
must have do all tool. And when those shops are looking to
increase productivity, they look to a dual operator style
machine for the answer. With 95 tons of punching power and
123 tons of shearing and notching pressure, the SW-95 is the
perfect option. Being a dual operator machine, the SW-95
will allow two operators on each end of the machine to work
simultaneously without loss of power at either station.
The SW-95 is a true five station ironworker, these stations
include punching, notching, flat bar shearing, angle
shearing, and bar shearing. Although these stations are not
unique to the SW-95, what is unique is the way in which they
function. The SW-95 uses all vertical movement to perform
all functions. This is achieved through the use of vertical
hydraulic cylinders. The big advantage to the vertical
movement is less material waste due to less clearance being
needed and punch tooling will last longer as the stress is
spread out over the entire circumference of the punch
instead of just one edge.
The SW-95 dual operator ironworker is constructed from heavy
structural plate for rigidity. The punch station has an
extra deep 16" throat depth and the shear station has
hydraulic hold downs for safe operation. Other great
features of the SW-95 are an electric back gauge, swing away
stripper, oversized work tables, foot pedal operation, and
waste buckets. Many different tooling sets are available as
well.
