Top Seller

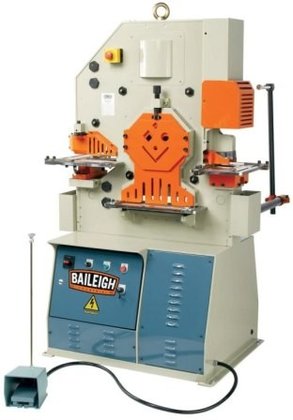

BAILEIGH SW-623 62-TON IRONWORKER, 3-PHASE,
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
SW-623
Capacity:
1.125" x .625"
Weight:
2,310 lbs

Specifications

Condition:
new
Stock number:
6327
Power:
5 HP - 220V 3-Phase
Blade length:
14.125"
Cycles / min:
28 @ 15 mm
I beam shear:
4"*
Throat depth:
8"
Angle bending:
2.5" x .312"*
Channel shear:
4"*
Pipe notching:
2.5"
Punch capacity:
1.125" x .625"
Working height:
39.5"
Round bar shear:
1.5"
Shipping weight:
2,310 lbs
Square bar shear:
1.5" x 1.5"
Angle flange trim:
4"
Flat bar shearing:
13.50" x .625"
Punching pressure:
62 Tons
Max. stroke length:
2"
Angle shearing at 90:
4" x 4" x .375"
Notching working height:
40"
Bar shearing working height:
44"
Multi vee press brake l x t:
9.875" x .156"*
Rectangle notcher w x d x t:
2" x 3.5" x .312"
Vee notcher side x side x t:
3.5" x 3.5" x .312"*
Flat shearing working height:
31.5"
Single vee press brake l x t:
6.312" x .312"*
Angle shearing working height:
40"
Subcategory:
Ironworkers

Description

Model: SW-623
Round Bar Shear: 1.5"
Rectangle Notcher W x D x T: 2" x 3.5" x .312"
Single Vee Press Brake L x T: 6.312" x .312"*
Punch Capacity: 1.125" x .625"
Punching Pressure: 62 Tons
Pipe Notching: 2.5"
Multi Vee Press Brake L x T: 9.875" x .156"*
Notching Working Height: 40"
Throat Depth: 8"
Vee Notcher Side x Side x T: 3.5" x 3.5" x .312"*
Working Height: 39.5"
Square Bar Shear: 1.5" x 1.5"
Channel Shear: 4"*
Bar Shearing Working Height: 44"
Angle Shearing Working Height: 40"
Angle Shearing at 90: 4" x 4" x .375"
Angle Bending: 2.5" x .312"*
Angle Flange Trim: 4"
Blade Length: 14.125"
I Beam Shear: 4"*
Max. Stroke Length: 2"
Cycles / Min.: 28 @ 15 mm
Flat Bar Shearing: 13.50" x .625"
Flat Shearing Working Height: 31.5"
Power: 5 HP - 220V 3-Phase
Shipping Weight: 2,310 lbs.
DESCRIPTION:
The SW-62 ironworker from Baileigh Industrial is the next
step in Baileigh Industrial hydraulic ironworkers. It takes
the concept of the SW-50 and adds a little more power or
capacity. This 62 ton has industry leading features, such
as vertical movement for all stations and oversized work
tables. The heavy duty, versatile design of the SW-62 iron
worker offers 62 tons of true vertical pressure to each of
its five integrated stations, making the SW-62 able to power
through most any requirement that may arise. The vertical
movement of the SW-62 prolongs tooling life by producing
less deformation and cleaner cuts than the competition. The
SW-62 iron worker is manufactured to the highest standards
in the industry, ensuring a lifetime of use in any
environment.
The SW-62 is available in both single and three phase power
versions depending on your power requirements. Making this
hydraulic ironworker is the perfect addition to any
fabrication or machine shop where punching, shearing and
notching is required.
The Baileigh Industrial SW-62 steel worker comes standard
with oversized working tables, quick change punch system,
wastebaskets, swing away material stripper, back gauge, and
much more. Giving the SW-62 the best bang for the buck in
its class.
