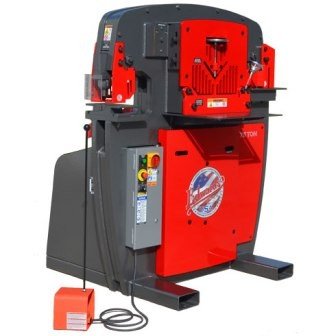

EDWARDS JAWS-75TON 75-TON IRONWORKER, 3-PHSE
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
JAWS-75TON
Capacity:
1-1/16" Dia. in 7/8" A36
Weight:
4100 lb

Specifications

Condition:
new
Stock number:
341
Depth:
45"
Width:
50"
Height:
60-1/4"
Rating:
75 Tons
Stroke:
1-13/16"
Cylinder:
3-1/2" Ram
Reservoir:
17 Gallons
Max. round:
1"
Max. square:
1"
Open height:
8-3/4"
Shut height:
6-15/16"
Work height:
39-1/16"
Throat depth:
10"
Max. capacity:
1-1/16" Dia. in 7/8" A36
Work height 2:
37"
Work height 3:
43-15/16"
Work height 4:
42"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Valve pressure:
3500 PSI
Max. capacity 2:
5" x 5" x 1/2"
Max. capacity 3:
2-1/2" x 5" x 1/2"
Shipping weight:
4100 lb
Subcategory:
Ironworkers

Description

Model: 75 Ton
PUNCH:
Rating: 75 Tons
Max. Capacity: 1-1/16" Dia. in 7/8" A36
(65,000 PSI Tensile)
Stroke: 1-13/16"
Throat Depth: 10"
Open Height: 8-3/4"
Shut Height: 6-15/16"
Work Height: 39-1/16"
FLAT BAR SHEAR:
Max. Capacity:
1/2" x 14"
3/4" x 10"
Max. Round: 1"
Max. Square: 1"
Work Height: 37"
ANGLE SHEAR:
Max. Capacity: 5" x 5" x 1/2"
Work Height: 43-15/16"
COPER NOTCHER:
Max. Capacity: 2-1/2" x 5" x 1/2"
Work Height: 42"
GENERAL SPECIFICATIONS:
Standard Motor:
7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors:
7.5 HP 3~ 460 V
1765 RPM 11 A
7.5 HP 3~ 575 V
1770 RPM 8 A
5 HP 1~ 208 V or 230 V
1725 RPM 23 A
*7.5 HP 1~ 208 V or 230 V
1765 RPM 36 A
*Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump: 10-1/2 GPM - 2 Stage
Valve Pressure: 3500 PSI
Reservoir: 17 Gallons
Cylinder: 3-1/2" Ram
DIMENSIONS:
Height: 60-1/4"
Width: 50"
Depth: 45"
Shipping Weight: 4100 lb
The Shop Standard
* Four Available Workstations
* Punch Assembly Designed for Optional Tooling
* Dedicated Coper Notcher Station
* Electric Stroke Control
* ANSI B11.5-1988R(02) Compliant
* ETL/UL Approved Controls
* Optional Tooling
The Edwards 75 Ton JAWS Ironworker offers you greater
capacity to accomplish larger tasks. Its standard features
include a Punch Assembly with Pedestal Die Table, a 14" wide
Flat Bar Shear, Angle Shear and Coper Notcher. The Punch
Assembly is easily converted to an open station designed to
accept optional Tooling Accessories, allowing flexibility to
customize your Ironworker according to your needs.
The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press.
