EDWARDS JAWS-55TON 55-TON IRONWORKER, 3-PHSE
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
JAWS-55TON
Capacity:
1-1/16" Dia. in 5/8" A36
Weight:
2480 lb

Specifications

Condition:
new
Stock number:
210
Depth:
36-1/8"
Width:
44-3/8"
Height:
55-1/4"
Rating:
55 Tons
Stroke:
1-1/4"
Cylinder:
2-1/2" Ram
Reservoir:
7 Gallons
Max. round:
7/8"
Max. square:
7/8"
Open height:
8-1/8"
Shut height:
6-7/8"
Work height:
36-9/16"
Throat depth:
7-1/2"
Max. capacity:
1-1/16" Dia. in 5/8" A36
Work height 2:
34-1/2"
Work height 3:
39-7/8"
Work height 4:
39-1/2"
Hydraulic pump:
3-1/2 GPM - 1 Stage
Throat depth 2:
11-3/16"
Valve pressure:
2500 PSI
Max. capacity 2:
2-1/2" x 4" x 5/16"
Shipping weight:
2480 lb
Subcategory:
Ironworkers

Description

Model: 55-Ton
PUNCH:
Rating: 55 Tons
Max. Capacity: 1-1/16" Dia. in 5/8" A36
(65,000 PSI Tensile)
Stroke: 1-1/4"
Throat Depth: 7-1/2"
Open Height: 8-1/8"
Shut Height: 6-7/8"
Work Height: 36-9/16"
FLAT BAR SHEAR:
Max. Capacity:
3/8" x 14"
1/2" x 12"
3/4" x 4"
Max. Round: 7/8"
Max. Square: 7/8"
Work Height: 34-1/2"
ANGLE SHEAR:
Max. Capacity:
3" x 3" x 3/8"
4" x 4" x 1/4"
Work Height: 39-7/8"
OPTIONAL COPER NOTCHER:
Max. Capacity: 2-1/2" x 4" x 5/16"
Work Height: 39-1/2"
OPEN STATION:
Throat Depth: 11-3/16"
Open Height: 8-1/8"
Shut Height: 6-7/8"
Stroke: 1-1/4"
Work Height: 34-1/2"
GENERAL SPECIFICATIONS:
Standard Motor:
5 HP 3~ 208 V or 230 V
1725 RPM 14 A
Optional Motors:
5 HP 3~ 460 V
1725 RPM 7 A
5 HP 3~ 575 V
1725 RPM 6 A
5 HP 1~ 208 V or 230 V
1725 RPM 23 A
Hydraulic Pump: 3-1/2 GPM - 1 Stage
Valve Pressure: 2500 PSI
Reservoir: 7 Gallons
Cylinder: 2-1/2" Ram
DIMENSIONS:
Height: 55-1/4"
Width: 44-3/8"
Depth: 36-1/8"
Shipping Weight: 2480 lb
Our Best Seller
* Four Available Workstations
* Universal Open Tooling Station
* Electric Stroke Control
* ANSI B11.5-1988R(02) Compliant
* ETL/UL Approved Controls

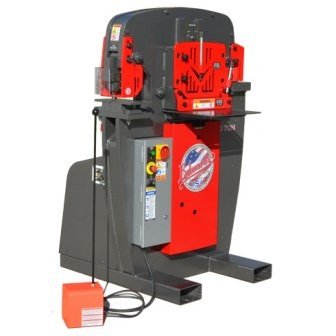

The Edwards 55 Ton JAWS Ironworker is well suited to fit the
needs of any fab shop, large or small. Standard features
include a Punch Assembly with Pedestal Die Table, Flat Bar
Shear, Angle Shear and a universal open tooling station
designed to accept optional Tooling Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press.
