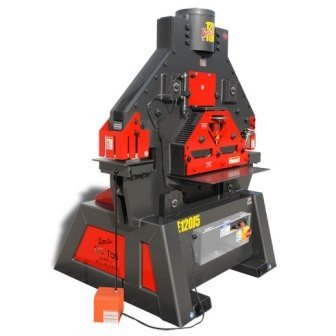

EDWARDS JAWS-120TON 120-TON IRONWORKER, 3-PHASE
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
JAWS-120TON
Capacity:
1-1/2" Dia. in 1" A36
Weight:
5500 lb

Specifications

Condition:
new
Stock number:
5319
Depth:
60"
Width:
11-3/4"
Height:
9"
Rating:
120 Tons
Stroke:
2-1/2"
Width 2:
60"
Cylinder:
2-3/4" Ram
Height 2:
84"
Reservoir:
17 Gallons
Max. round:
1-1/4"
Max. square:
1-1/4"
Open height:
9-1/8"
Shut height:
7"
Work height:
36-5/8"
Throat depth:
11"
Max. capacity:
1-1/2" Dia. in 1" A36
Work height 2:
33-1/4"
Work height 3:
52-1/2"
Work height 4:
40"
Work height 5:
51-3/4"
Hydraulic pump:
24 GPM
Valve pressure:
3800 PSI
Max. capacity 2:
6" x 6" x 1/2"
Max. capacity 3:
2-1/2" x 6" x 1/2"
Shipping weight:
5500 lb
Subcategory:
Ironworkers

Description

Model: 120-Ton
PUNCH:
Rating: 120 Tons
Max. Capacity: 1-1/2" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke: 2-1/2"
Throat Depth: 11"
Open Height: 9-1/8"
Shut Height: 7"
Work Height: 36-5/8"
FLAT BAR SHEAR:
Max. Capacity:
1/2" x 24"
1" x 12"
Max. Round: 1-1/4"
Max. Square: 1-1/4"
Work Height: 33-1/4"
ANGLE SHEAR:
Max. Capacity: 6" x 6" x 1/2"
Work Height: 52-1/2"
COPER NOTCHER:
Max. Capacity: 2-1/2" x 6" x 1/2"
Work Height: 40"
OPEN CAVITY:
Height: 9"
Width: 11-3/4"
Work Height: 51-3/4"
GENERAL SPECIFICATIONS:
Standard Motor:
10 HP 3~ 208 V or 230 V
1770 RPM 26 A
Optional Motors:
10 HP 3~ 460 V
1770 RPM 12 A
10 HP 3~ 575 V
1770 RPM 10 A
10 HP 1~ 208 V or 230 V
1740 RPM 40 A
Hydraulic Pump: 24 GPM
Valve Pressure: 3800 PSI
Reservoir: 17 Gallons
Cylinder: 2-3/4" Ram
DIMENSIONS:
Height: 84"
Width: 60"
Depth: 60"
Shipping Weight: 5500 lb
The Powerhouse
* Five Available Workstations
* Universal Open Tooling Station
* 24" Flat Bar Shear
* Dedicated Coper Notcher
* Electric Stroke Control
Our most powerful Ironworker, the Edwards 120 Ton JAWS
Ironworker offers the most in capacity and versatility.
Standard features include a Punch Assembly, 24" wide Flat
Bar Shear, high capacity Angle Shear, Coper Notcher and a
universal open tooling station for optional Tooling
Accessories allowing you to select the perfect tool for your
needs.
The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press.
