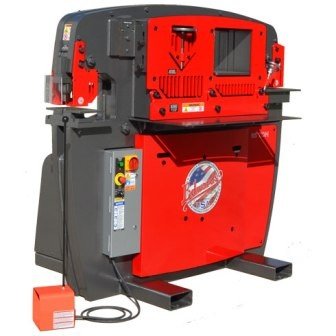

EDWARDS JAWS-65TON 65-TON IRONWORKER, 1-PHSE
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
JAWS-65TON
Capacity:
1-1/16" Dia. in 3/4" A36
Weight:
4750 lb

Specifications

Condition:
new
Stock number:
4012
Depth:
45"
Width:
12"
Height:
8-3/4"
Rating:
65 Tons
Stroke:
1-13/16"
Width 2:
62-1/8"
Cylinder:
3-1/2" Ram
Height 2:
57"
Reservoir:
17 Gallons
Max. round:
1"
Max. square:
1"
Open height:
8-3/4"
Shut height:
6-15/16"
Work height:
36-9/16"
Throat depth:
9-3/4"
Max. capacity:
1-1/16" Dia. in 3/4" A36
Work height 2:
34-1/2"
Work height 3:
43-1/2"
Work height 4:
39-1/2"
Work height 5:
43"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Valve pressure:
3500 PSI
Max. capacity 2:
5" x 5" x 3/8"
Max. capacity 3:
2-1/2" x 5" x 3/8"
Shipping weight:
4750 lb
Subcategory:
Ironworkers

Description

Model: 65-Ton
PUNCH:
Rating: 65 Tons
Max. Capacity: 1-1/16" Dia. in 3/4" A36
(65,000 PSI Tensile)
Stroke: 1-13/16"
Throat Depth: 9-3/4"
Open Height: 8-3/4"
Shut Height: 6-15/16"
Work Height: 36-9/16"
FLAT BAR SHEAR:
Max. Capacity:
3/8" x 24"
1/2" x 14"
1" x 4"
Max. Round: 1"
Max. Square: 1"
Work Height: 34-1/2"
ANGLE SHEAR:
Max. Capacity: 5" x 5" x 3/8"
Work Height: 43-1/2"
COPER NOTCHER:
Max. Capacity: 2-1/2" x 5" x 3/8"
Work Height: 39-1/2"
OPEN CAVITY:
Height: 8-3/4"
Width: 12"
Work Height: 43"
GENERAL SPECIFICATIONS:
Standard Motor:
7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors:
7.5 HP 3~ 460 V
1765 RPM 11 A
7.5 HP 3~ 575 V
1770 RPM 8 A
5 HP 1~ 208 V or 230 V
1725 RPM 23 A
*7.5 HP 1~ 208 V or 230 V
1765 RPM 36 A
*Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump: 10-1/2 GPM - 2 Stage
Valve Pressure: 3500 PSI
Reservoir: 17 Gallons
Cylinder: 3-1/2" Ram
DIMENSIONS:
Height: 57"
Width: 62-1/8"
Depth: 45"
Shipping Weight: 4750 lb
Our Most Versatile Machine
* Five Available Workstations
* Universal Open Tooling Station
* 24" Flat Bar Shear
* Dedicated Coper Notcher
* Electric Stroke Control
* ANSI B11.5-1988R(02) Compliant
* ETL/UL Approved Controls
The five workstations of the Edwards 65 Ton JAWS Ironworker
give you the power to handle any size job and the
flexibility to tailor it to your specific needs. Standard
features include a Punch Assembly with Pedestal Die Table,
24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a
universal open tooling station designed for optional Tooling
Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press.
