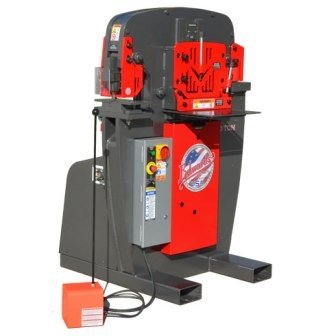

EDWARDS JAWS-50TON 50-TON IRONWORKER, 1-PHSE
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
JAWS-50TON
Capacity:
1" Dia. in 5/8" A36
Weight:
2020 lb

Specifications

Condition:
new
Stock number:
4011
Depth:
36-1/8"
Width:
36-3/4"
Height:
54-1/2"
Rating:
50 Tons
Stroke:
1-7/8"
Cylinder:
2-1/2" Ram
Reservoir:
7 Gallons
Max. round:
3/4"
Max. square:
3/4"
Open height:
8-1/8"
Shut height:
6-1/4"
Work height:
36-9/16"
Throat depth:
7"
Max. capacity:
1" Dia. in 5/8" A36
Work height 2:
34-1/2"
Work height 3:
39-7/8"
Work height 4:
39-1/2"
Hydraulic pump:
3-1/2 GPM - 1 Stage
Valve pressure:
2500 PSI
Max. capacity 2:
2" x 3" x 5/16"
Shipping weight:
2020 lb
Subcategory:
Ironworkers

Description

Model: 50-Ton
PUNCH:
Rating: 50 Tons
Max. Capacity: 1" Dia. in 5/8" A36
(65,000 PSI Tensile)
Stroke: 1-7/8"
Throat Depth: 7"
Open Height: 8-1/8"
Shut Height: 6-1/4"
Work Height: 36-9/16"
FLAT BAR SHEAR:
Max. Capacity:
1/2" x 10"
3/4" x 4"
Max. Round: 3/4"
Max. Square: 3/4"
Work Height: 34-1/2"
ANGLE SHEAR:
Max. Capacity:
3" x 3" x 3/8"
4" x 4" x 1/4"
Work Height: 39-7/8"
COPER NOTCHER:
Max. Capacity: 2" x 3" x 5/16"
Work Height: 39-1/2"
GENERAL SPECIFICATIONS:
Standard Motor:
5 HP 3~ 208 V or 230 V
1725 RPM 14 A
Optional Motors:
5 HP 3~ 460 V
1725 RPM 7 A
5 HP 3~ 575 V
1725 RPM 6 A
5 HP 1~ 208 V or 230 V
1725 RPM 23 A
Hydraulic Pump: 3-1/2 GPM - 1 Stage
Valve Pressure: 2500 PSI
Reservoir: 7 Gallons
Cylinder: 2-1/2" Ram
DIMENSIONS:
Height: 54-1/2"
Width: 36-3/4"
Depth: 36-1/8"
Shipping Weight: 2020 lb
Compact and Versatile
* Four Available Workstations
* Punch Assembly Designed for Optional Tooling
* Dedicated Coper Notcher Station
* Electric Stroke Control
* ANSI B11.5-1988R(02) Compliant
* ETL/UL Approved Controls
The Edwards 50 Ton JAWS Ironworker is the ideal Ironworker
for the small shop that needs a powerful, versatile tool for
all kinds of tasks. Standard features include a Punch
Assembly with Pedestal Die Table, Flat Bar Shear, Angle
Shear and a dedicated Coper Notcher station. The Punch
Assembly quickly converts to an open tooling station
designed to accept optional Tooling Accessories.
The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press.
