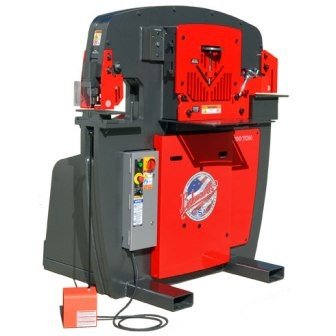

EDWARDS JAWS-100-TON 100-TON IRONWORKER, 3
Location:
McClellan Park, CA
Manufacturer:
Edwards
Model:
JAWS-100-TON
Capacity:
1-1/16" Dia. in 1" A36
Weight:
4650 lb

Specifications

Condition:
new
Stock number:
574
Depth:
45"
Width:
56-1/8"
Height:
61-11/16"
Rating:
100 Tons
Stroke:
1-13/16"
Cylinder:
3-1/2" Ram
Reservoir:
17 Gallons
Max. round:
1-1/4"
Max. square:
1-1/4"
Open height:
8-3/4"
Shut height:
6-15/16"
Work height:
39-1/16"
Throat depth:
11"
Max. capacity:
1-1/16" Dia. in 1" A36
Work height 2:
37"
Work height 3:
43-15/16"
Work height 4:
42"
Hydraulic pump:
10-1/2 GPM - 2 Stage
Throat depth 2:
14-3/4"
Valve pressure:
3500 PSI
Max. capacity 2:
6" x 6" x 1/2"
Max. capacity 3:
2-1/2" x 6" x 1/2"
Shipping weight:
4650 lb
Subcategory:
Ironworkers

Description

Model: 100-Ton
PUNCH:
Rating: 100 Tons
Max. Capacity: 1-1/16" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke: 1-13/16"
Throat Depth: 11"
Open Height: 8-3/4"
Shut Height: 6-15/16"
Work Height: 39-1/16"
FLAT BAR SHEAR:
Max. Capacity:
3/4" x 14"
1" x 10"
Max. Round: 1-1/4"
Max. Square: 1-1/4"
Work Height: 37"
ANGLE SHEAR:
Max. Capacity: 6" x 6" x 1/2"
Work Height: 43-15/16"
OPTIONAL COPER NOTCHER:
Max. Capacity: 2-1/2" x 6" x 1/2"
Work Height: 42"
OPEN STATION:
Throat Depth: 14-3/4"
Open Height: 8-3/4"
Shut Height: 6-15/16"
Stroke: 1-13/16"
Work Height: 37"
GENERAL SPECIFICATIONS:
Standard Motor:
7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors:
7.5 HP 3~ 460 V
1765 RPM 11 A
7.5 HP 3~ 575 V
1770 RPM 8 A
5 HP 1~ 208 V or 230 V
1725 RPM 23 A
*7.5 HP 1~ 208 V or 230 V
1765 RPM 36 A
*Required for 1~
Hydraulic Accessory Pack
Hydraulic Pump: 10-1/2 GPM - 2 Stage
Valve Pressure: 3500 PSI
Reservoir: 17 Gallons
Cylinder: 3-1/2" Ram
DIMENSIONS:
Height: 61-11/16"
Width: 56-1/8"
Depth: 45"
Shipping Weight: 4650 lb
The Workhorse
* Four Available Workstations
* High Capacity Angle Shear
* Universal Open Tooling Station
* Electric Stroke Control
* ANSI B11.5-1988R(02) Compliant
* ETL/UL Approved Controls
If you're looking for versatility and power, the Edwards 100
Ton JAWS Ironworker is perfect for your shop. Standard
features include a Punch Assembly, a 14" wide Flat Bar
Shear, a high capacity Angle Shear and a universal open
tooling station designed for optional Tooling Accessories
allowing you to select the perfect tool for your needs.
The optional Hydraulic Accessory Pack allows your Ironworker
to act as a power source to our expanding line of innovative
Hydraulic Accessory Tools, such as the 10 Ton Tube/Pipe
Bender, 20 Ton Shop Press and 40 Ton Shop Press.
