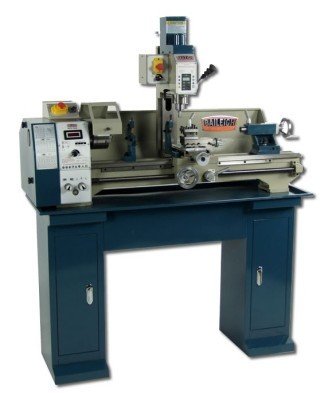

BAILEIGH MLD-1030 10" x 30"
Location:
McClellan Park, CA
Manufacturer:
Baileigh lathes
Model:
MLD-1030
Spindle Bore:
1.1"
Distance between Centers:
29.5"

Specifications

Condition:
new
Stock number:
8675
Motor:
1 hp
Power:
120V
Speeds:
50-2500 rpm (variable)
Spindle bore:
1.1"
Width of bed:
5.3"
Spindle taper:
R8
Spindle stroke:
2"
Swing over bed:
9.75"
Shipping weight:
668 lbs
Top slide travel:
2"
Cross slide travel:
4.5"
Shipping dimensions:
56" x 26" x 49"
Range of inch threads:
8 - 56 T.P.I
Taper of spindle bore:
MT 2
Swing over cross slide:
5.7"
Tailstock quill travel:
2"
Range of metric threads:
4 - 3.5 mm
Distance between centers:
29.5"
Taper of tailstock quill:
MT 4
Max. distance spindle to table:
8.375"
Max. distance spindle to column:
6.5"
Range of longitudinal feed per rev:
003 - .008"
Subcategory:
Engine

Description

MODEL: MLD-1030
Range Of Longitudinal Feed Per Rev: .003 - .008"
Range Of Metric Threads: .4 - 3.5 mm
Spindle Bore: 1.1"
Range Of Inch Threads: 8 - 56 T.P.I
Motor: 1 hp
Speeds: 50-2500 rpm (variable)
Top Slide Travel: 2"
Width Of Bed: 5.3"
Spindle Stroke: 2"
Spindle Taper: R8
Tailstock Quill Travel: 2"
Taper Of Spindle Bore: MT 2
Taper Of Tailstock Quill: MT 4
Swing Over Bed: 9.75"
Swing Over Cross Slide: 5.7"
Max. Distance Spindle To Column: 6.5"
Max. Distance Spindle To Table: 8.375"
Cross Slide Travel: 4.5"
Distance Between Centers: 29.5"
Power: 120V
Shipping Weight: 668 lbs.
Shipping Dimensions: 56" x 26" x 49"
DESCRIPTION:
Have a small shop and always looking for more room? How
about combining three machines into one? Baileigh
Industrials unique MLD-1030 mill drill lathe is the answer
for anyone looking to get maximum versatility from there
tools. The MLD-1030 combines 3 machines into one small
package, giving the operator the choice for milling,
drilling, or performing lathe operations and opening up
floor space for more tools. Although the MLD is small in
stature, it has all the features that an operator would want
in a 3 in 1 combination machine. Precision ground and
hardened ways ensure long life and years of machining on the
MLD-1030.
The MLD-1030's lathe features adjustable speed from 50-2500
RPM and includes a digital read out for accurate cutting
speed. Being that the MLD-1030 features two powerful 110V
1HP motor that allows you to operate anywhere there is a
standard outlet. There is one motor for the lathe and mill
independently. This gives for longer life and less wear and
tear on the motors. Steady rest, follow rest, three jaw
chuck, and four jaw chuck are just a few of the options that
come standard on this mill drill lathe.
The milling and drilling head of the MLD-1030 mill drill
lathe is as sturdy as any combination machine on the market.
the head itself features a column style base with adjustable
depth. A digital readout will help to keep the depth of cut
a precise as possible. A robust MT-2 taper is also standard
of the MLD-1030.
This mill drill lathe should be on any small home shops list
of must haves.
